Egis Single XD - NMEA 2000 - Relay w/Knobs - 4 Position DT [9811-4500]

Egis Mobile Electric  |  SKU: HS-108559
$128.99 $171.70

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

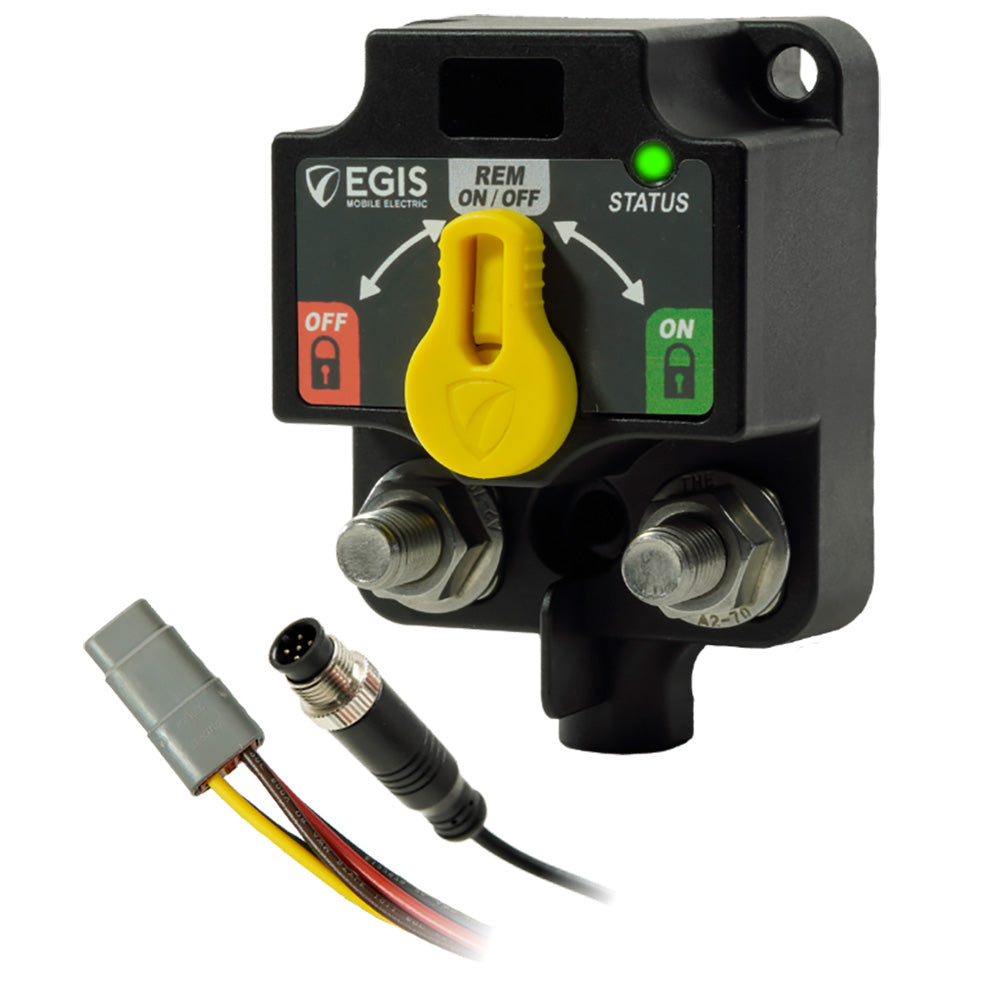

Single XD - NMEA 2000 - Relay with Knobs - 4 Position DT

Features:

  • Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
  • 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
  • Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
  • Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
  • 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

  • Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
  • Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
  • 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
  • Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
  • Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

  • Type: Electric
  • Box Dimensions: 3"H x 4"W x 8"L WT: 1.2 lbs
  • UPC: 850067590200
