ARCO Marine Zeus A115/3500W 24V HD High Output Alternator - Pad Mount [4413]

ARCO Marine  |  SKU: HS-113447
$1,087.00 $1,367.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

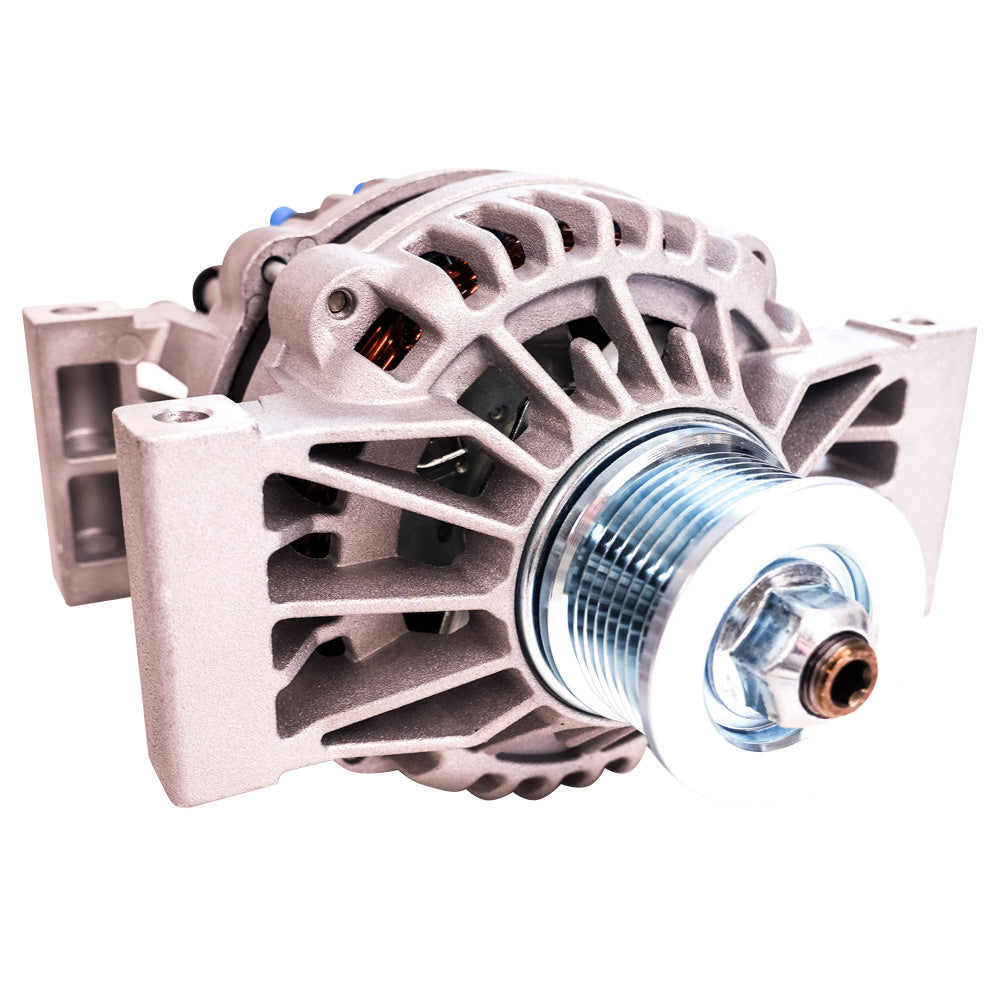

Zeus A115/3500W 24V HD High Output Alternator - Pad Mount

ARCO Zeus Heavy Duty Alternator is engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

  • Replace your noisy generator!
  • Suitable for most diesel applications
  • Designed for extended duty operation
  • Engineered for high energy production
  • Rapidly charges large battery banks.
  • Coolest operating temperatures for increased performance, with dual internal fans
  • Reduces the need for a generator by creating additional power with your engine.
  • External Regulation Required

Regulation:

  • External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

  • Voltage: 24V
  • Field Type: P
  • Rotor Poles: 12
  • Weight: 18.7 lb (8.5 kg)
  • Regulation: External Only (EX)
  • Cut-In RPM: 1,288
  • Maximum Alt RPM: 10,000
  • Rear Battery Post: M8 Thread
  • Standard Pulley: K8 59 mm
  • Shaft Diameter: 7/8 in (22.22 mm)
  • Avalanche Diodes: 50 amps
  • Max Output (Cold): 132 amps
  • Sustained Cruising Output (Hot, 6,000 RPM): 104 Amps
  • Sustained Idle Output (Hot, 3,000 RPM): 89 amps
  • Max Continuous Operating Temperature: 125°C
