Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard Active Imaging HD Transducer [000-15987-001]

Lowrance  |  SKU: HS-96133
$3,099.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

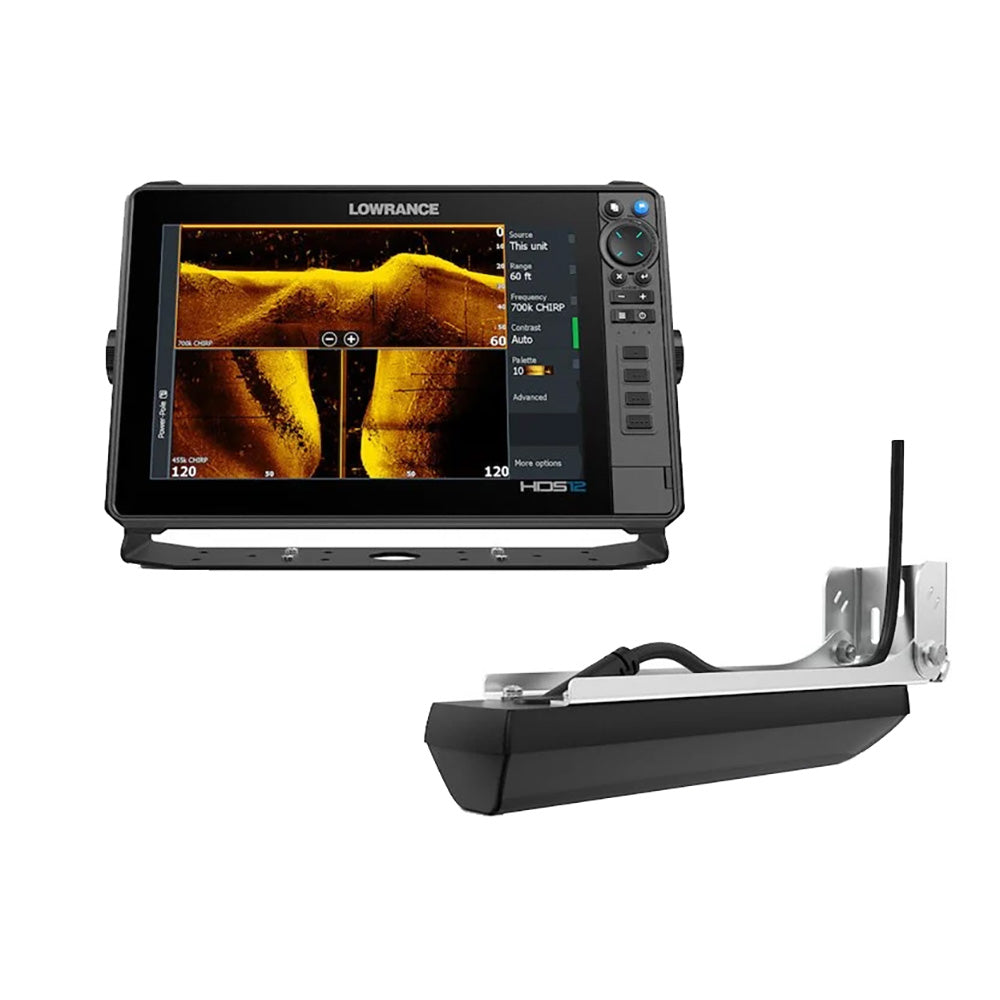

HDS PRO 12 - with Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer

See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

In the box:

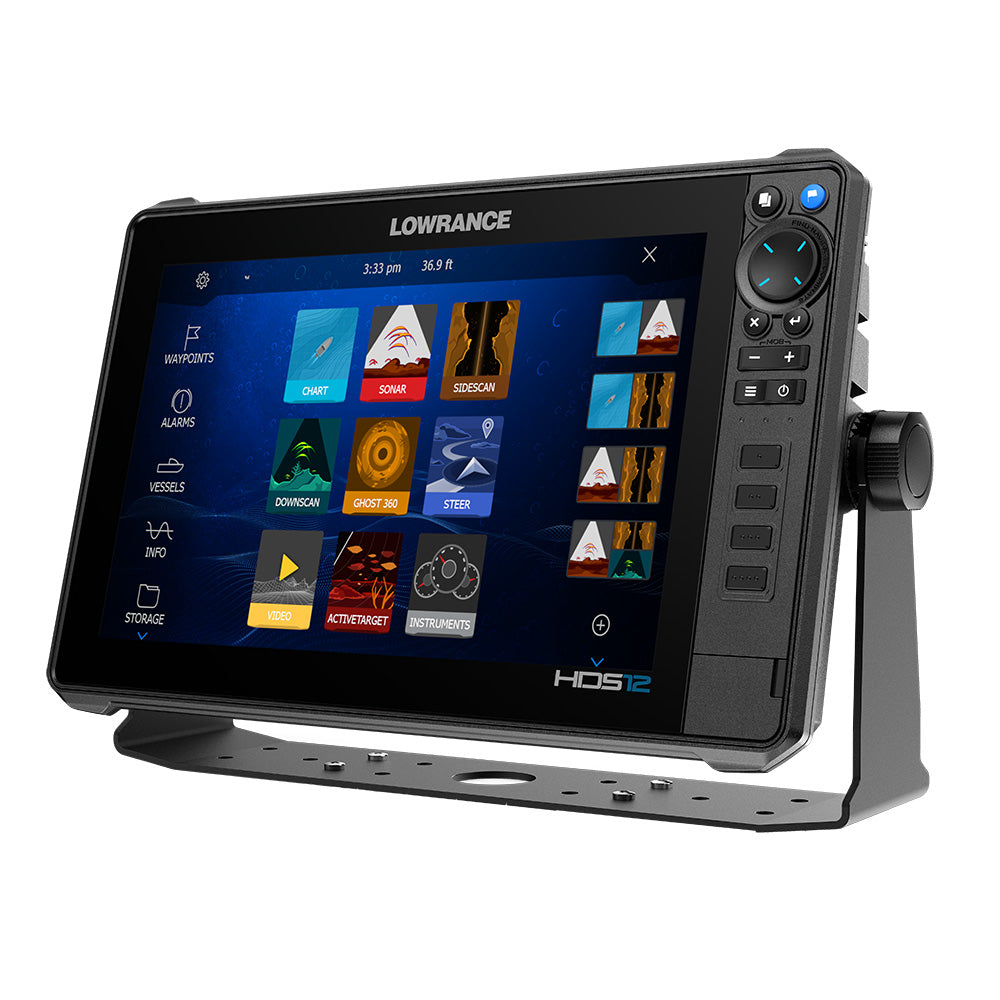

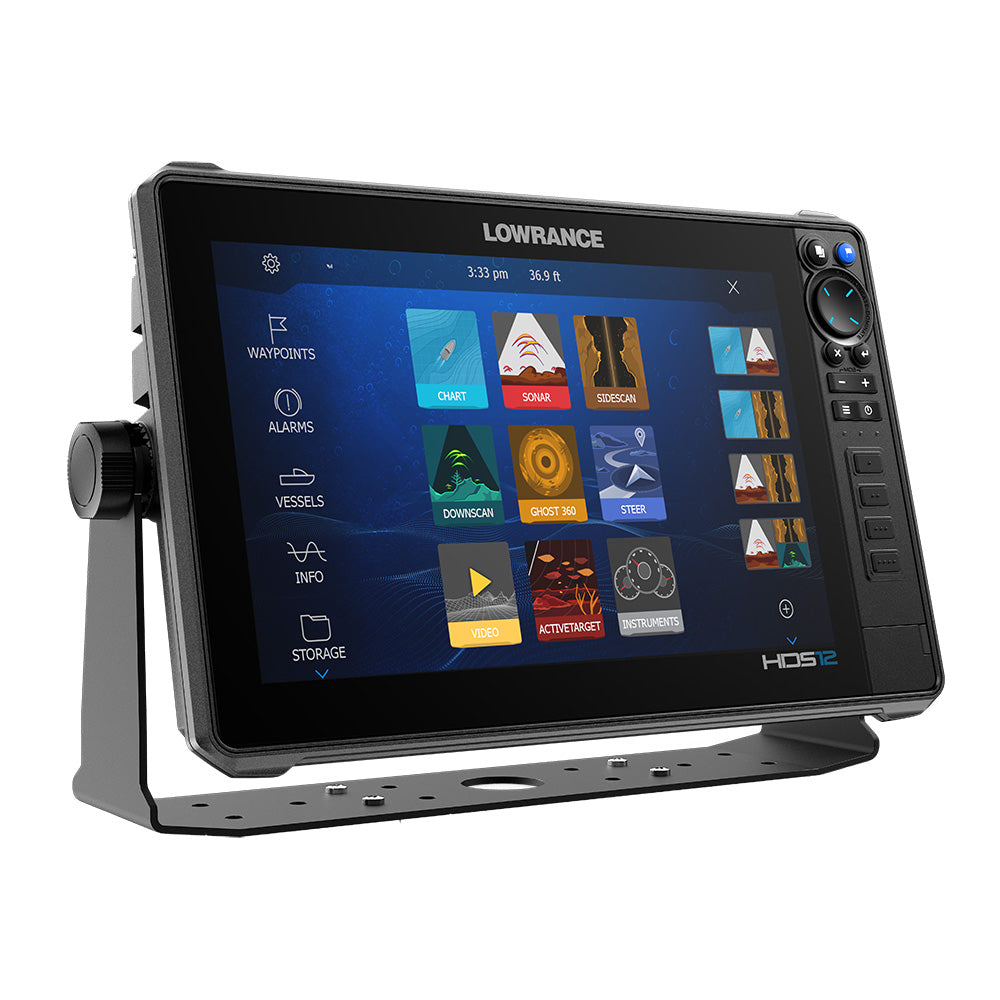

  • HDS PRO fishfinder/chartplotter (12-inch display screen)
  • C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
  • Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001)

Features (Lowrance Active Imaging HD 3-in-1 Transducer):

  • High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
  • Lowrance® CHIRP with superb clarity and target separation
  • FishReveal™ DownScan view makes fish identification easy
  • Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
  • Smart transducer design boosts signal clarity
  • Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Features:

  • Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
  • SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
  • High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
  • High-resolution ActiveTarget 2 Live Sonar ready
  • FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
  • Real-time mapping is available with C-MAP Genesis Live.
  • Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
  • Large programmable keys
  • Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
  • NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications

Display:

  • Backlight Color: Pure white LED
  • Display Resolution: 1280 x 800
  • Viewing Angles: 80° top/bottom, 80° left/right

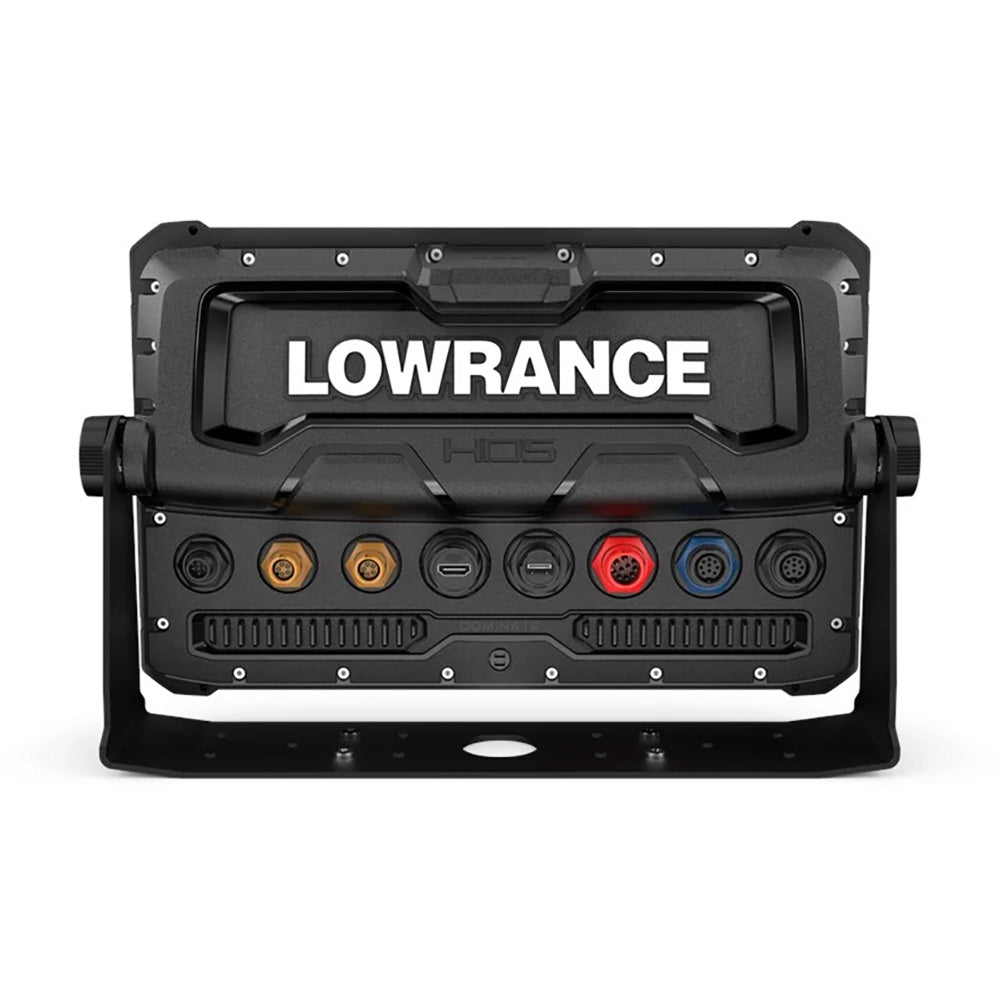

Connectivity:

  • Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
  • Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
  • Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
  • NMEA 2000 Connectivity: 1x Micro-C
  • SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

  • Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on
  • Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on
  • Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on
  • Recommended Fuse Rating: 5A
  • Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
  • Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )

 GPS:

  • GPS Receiver Channels: 16
  • Update rate: 10 Hz

MFD (Multi-Function Display):

  • Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
  • Internal Storage: 8.0 GB Internal
  • Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

Specifications:

  • Cartography Brand: C-Map
  • Included Transducer: 000-16062-001
  • Screen Size: 12"
  • Touchscreen: Yes
  • Transducer Included: Yes
  • Box Dimensions: 11"H x 16"W x 17"L WT: 14 lbs
  • UPC: 9420064129676
