Simrad NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & N2k Starter Kit [000-13335-001]

Simrad  |  SKU: HS-62224
$1,749.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

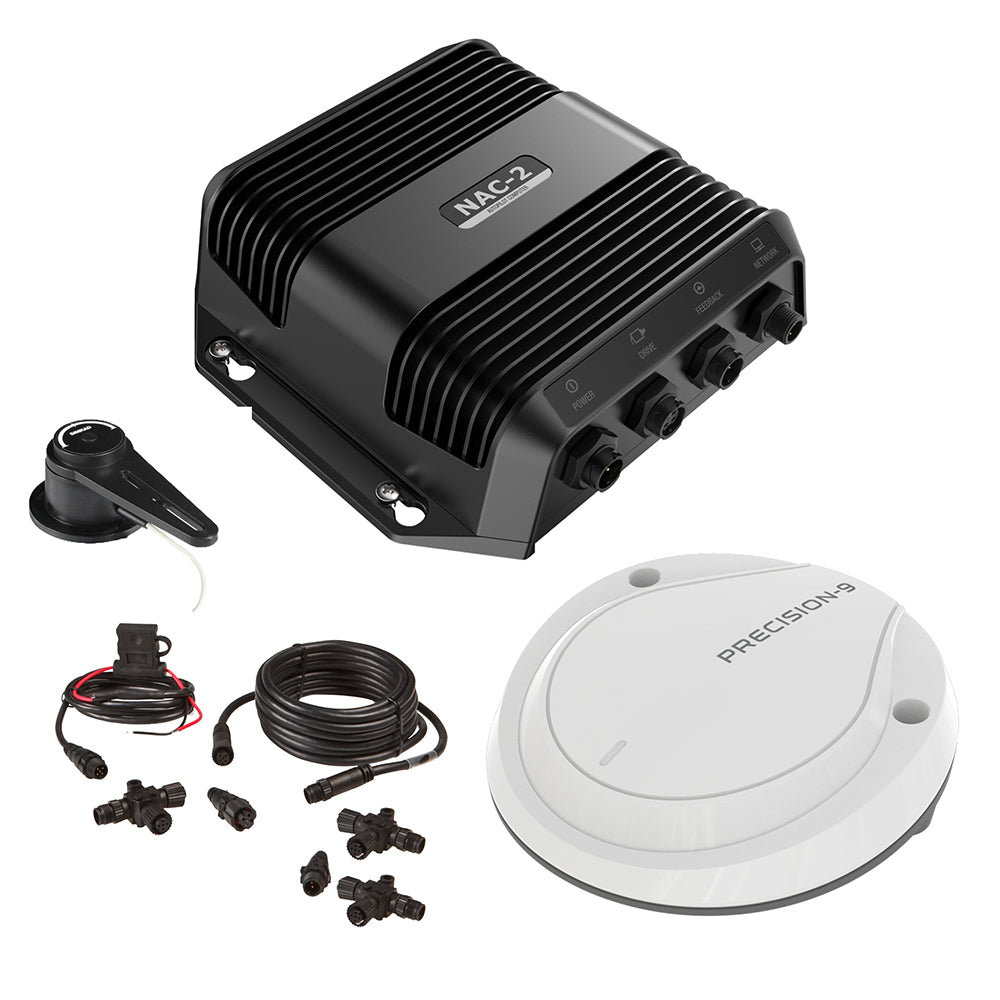

NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & N2k Starter Kit

Comprising of the high-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10M (33') in length.

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.

RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Specifications:

  • Operating temperature: -25°C to +55°C (13°F to 131°F)
  • Protection: Splashproof, IPx5
  • Weight: 0.6 kg (1.3 lbs)
  • Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm
  • Power supply: 9-31.2 V DC
  • Load: 140 mA + drive unit load
  • Performance: Drive: 8 A cont., 16A for 1s
  • Network: 1xMicroC (NMEA2000)
  • Feedback: Variable voltage/resistive 0-5V
  • Drive output: To PUMP-1 or HELM-1
  • Power supply: 9-31.2 V DC
  • Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
  • Clutch: 12/24V DC, min 10mA, max 3A

Specifications:

  • Steering Type: Hydraulic
  • Box Dimensions: 10"H x 16"W x 16"L WT: 9.2 lbs
  • UPC: 9420024155639

Owner's Manual (pdf)
