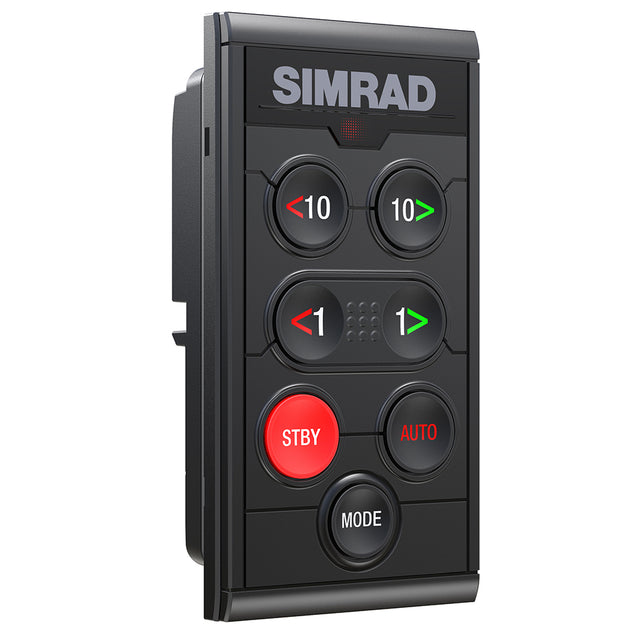

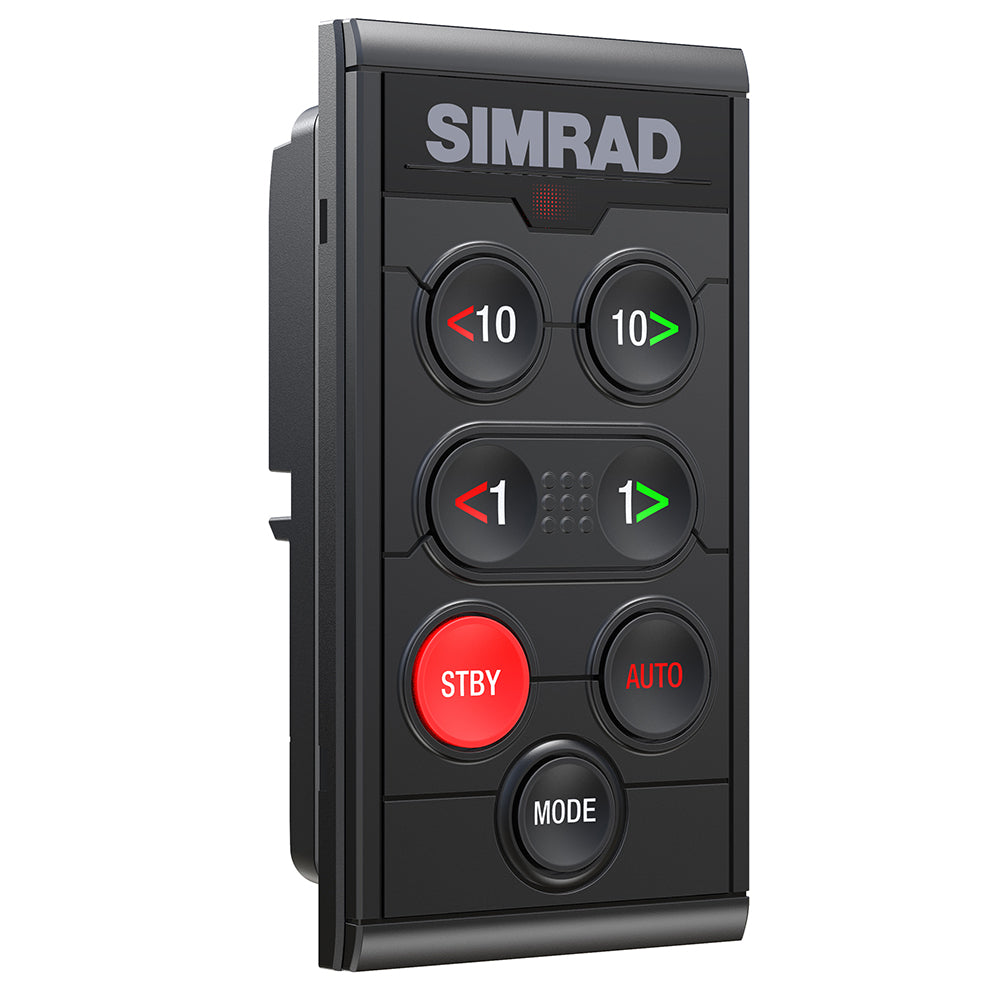

Simrad OP12 Autopilot Controller [000-13287-001]

Simrad  |  SKU: HS-62228
$311.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

OP12 Autopilot Controller

The OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.

Features:

  • Intuitive operation
  • Easy installation
  • Combine with an IS42 display for full autopilot control
  • Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
  • Use alongside NSS & NSO evo2 MFD's as an additional Autopilot Controller
  • Low-profile glass helm design
  • Low power consumption
  • Certified NMEA 2000® connectivity

Specifications:

  • Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3")
  • Weight: 0.12kg (0.3lbs)
  • Power Consumption: 1.4 Watts
  • Network Load: 3 LEN
  • Color: Black
  • Environmental Protection, Waterproof: Waterproof rating: IPx7
  • Environmental Protection, Humidity: Up to 95% RH
  • Compass Safe Distance: 300mm (1.0")
  • Temperature Operating: -15 to +55°C (5°F to +131°F)
  • Temperature Storage: -30 to +70 °C (-22 to +158 °F)

Specifications:

  • Type: Parts
  • Box Dimensions: 5"H x 6"W x 9"L WT: 0.8 lbs
  • UPC: 9420024155127

Owner's Manual (pdf)
