Actisense NMEA2000 Micro T-Piece w/Female Connectors 3M UL Certified Cable [A2K-MPT-2]

Actisense  |  SKU: HS-111804
$45.00 $50.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

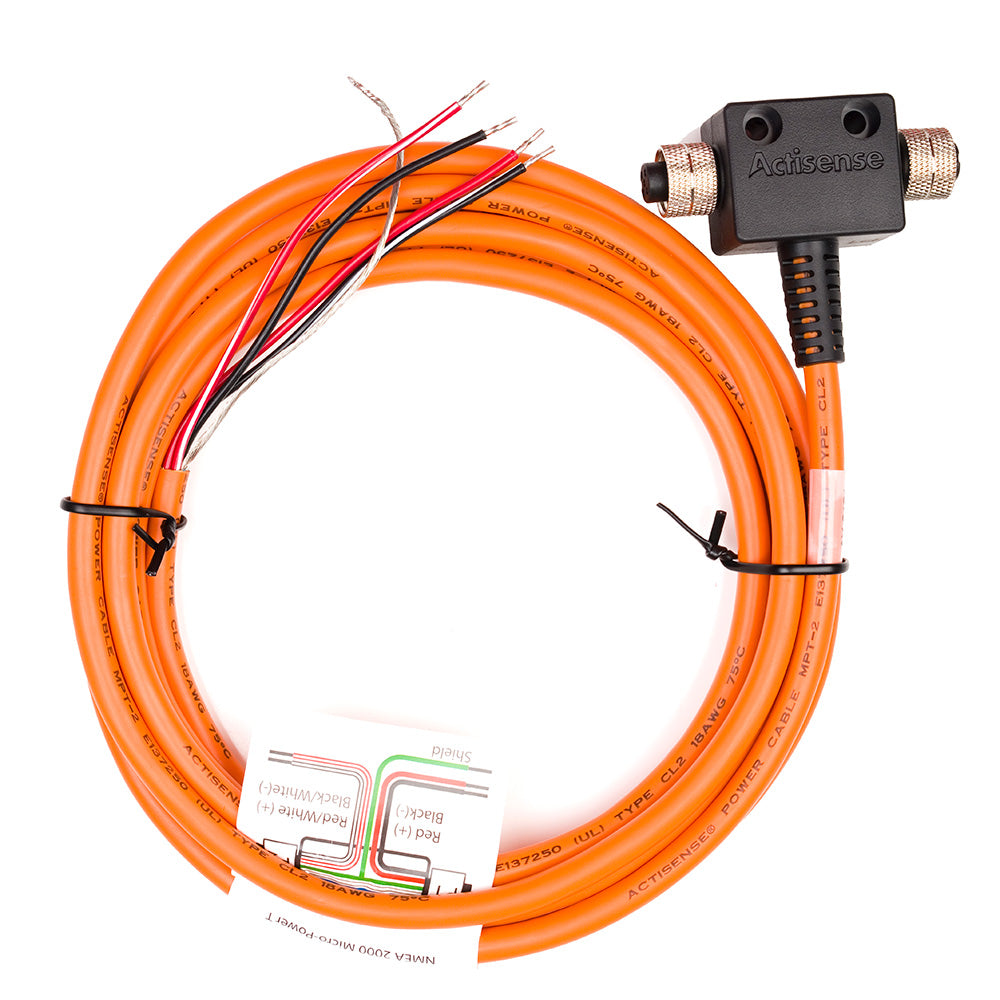

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified Cable

The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.

Now with improved strain relief!

The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.

The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

Technical Specifications:

Electrical

  • Rated Current - 4A (each feed)
  • Rated Voltage - 60VDC

Mechanical

  • Female Contact - Phosphor bronze, gold plated
  • Contact Carrier - PA66 (30% Glass Filled), Black
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, black
  • Housing - PVC, black
  • Cable Jacket Material - 0.8mm Nom. PVC, orange
  • Cable Outer Diameter - 6.7mm ±0.254mm
  • Cable Length - 3M
  • Wire Length - 100mm (7mm stripped)
  • Wire Jacket - PVC
  • Wires - 18 AWG (stripped and tinned)
  • Drain - 18 AWG (34-strand tinned copper)
  • Shield - Al-mylar
  • Weight - 290g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -20°C to +70°C
  • Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Female-Female
  • Data Interface: NMEA 2000
  • Cable Length (Meters): 3m
  • NMEA 2000 Connectors: Tee Connectors
  • Box Dimensions: 1"H x 6"W x 7"L WT: 0.65 lbs
  • UPC: 5060998710140
