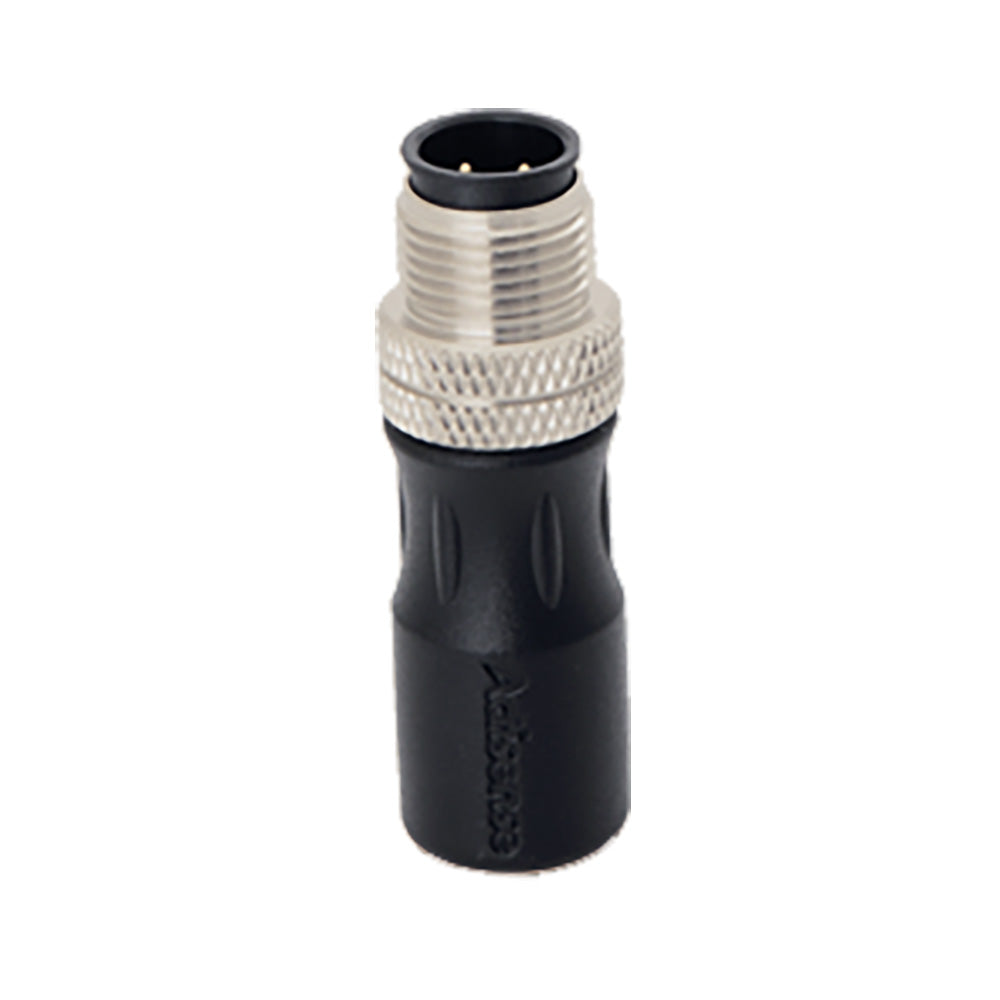

Actisense NMEA2000 Micro Terminator - Male [A2K-TER-M]

Actisense  |  SKU: HS-111806
$13.50 $15.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

NMEA2000 Micro Terminator - Male

Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.

Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge

Technical Specifications:

Electrical

  • Rated Voltage (power pair) - 60VDC
  • Rated Current - 4A
  • Internal Termination Resistors - 120 Ω ± 1% 500mW

Mechanical

  • Male Contact - Brass, gold plated
  • Contact Carrier - PA66 (30% Glass filled), black
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, Black
  • Housing - PVC, black
  • Weight - 15g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -25°C to +70°C
  • Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Male
  • Data Interface: NMEA 2000
  • NMEA 2000 Connectors: Terminators
  • Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs
  • UPC: 5060998710300

Owner's Manual (pdf)
Brochure (pdf)
