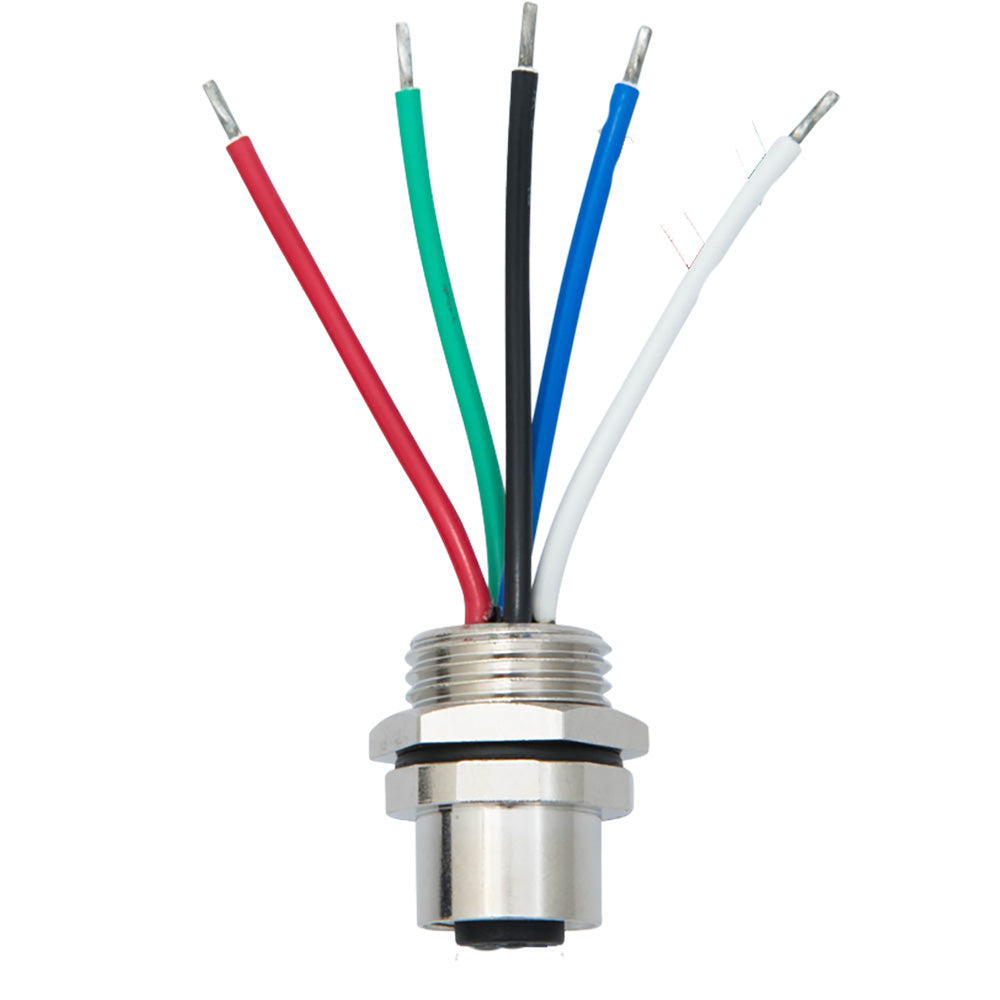

Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female [A2K-PMW-F]

Actisense  |  SKU: HS-102780
$21.00 $23.34

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

  • Rated Current - 4A
  • Rated Voltage - 60VDC

Mechanical

  • Contacts - Brass, gold-plated
  • Contact Carrier - Nylon & GF
  • Contact Polarization - Standard M12-"A"-Polarization
  • Mating Thread - M12
  • Housing - Brass, nickel-plated
  • Mounting Thread - PG9
  • Mounting Nut - Brass, nickel plated - PG9
  • Mounting Hole Diameter - 15.3mm
  • Wires - 18 AWG (stripped and tinned)
  • Wire Jacket - PVC
  • Weight - 20g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -25°C to +90°C
  • Connector Specification - Meets IEC61076-2-101
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Female
  • Data Interface: NMEA 2000
  • Box Dimensions: 1"H x 5"W x 7"L WT: 0.05 lbs
  • UPC: 5060998710157
