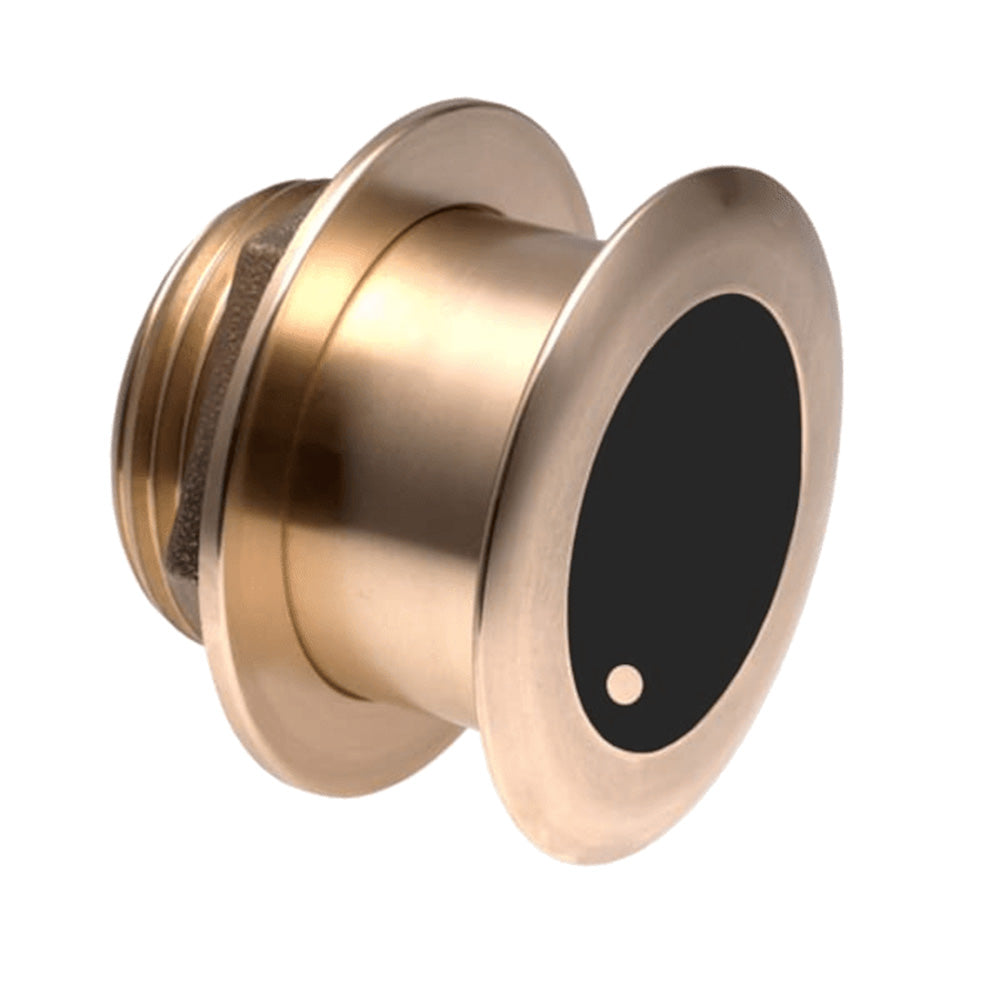

Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable [B164-12-MM]
Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable [B164-12-MM] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Elemen...
Description
Description
B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable
12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
- 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
- No effect on the boat’s running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID® technology
Specifications:
- Acoustic Window: Urethane
- Cable-Length: 2 M (6.5')
- Common Use: Leisure/Yachting, Fishing
- Connector: Airmar 9-Pin (MM1)
- Conventional Beam: 22°x20°/6°
- Country of Origin: USA
- Deadrise Range: 8° to 15°
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 15°
- Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800')
- Mix and Match Series: 9-Pin 1000 Watt
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Sensor Connector: MM1
- Single or Dual Frequency: Conventional Dual Frequency
- Tilt Angle: 12°
- Tilted Element: Yes
- Weight: 2.7 kg (6 lbs)
- Power Rating: 1 kW
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 11 m (36')
- Hole Size: 95 mm (3-3/4")
- Usable Shaft Length: 71 mm (2.80")
- Display Connector: Cable Required
Specifications:
- Cable Length (Feet): 6.5'
- Chirp: No
- Imaging: Standard
- Mounting Style: Thru-Hull
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs
