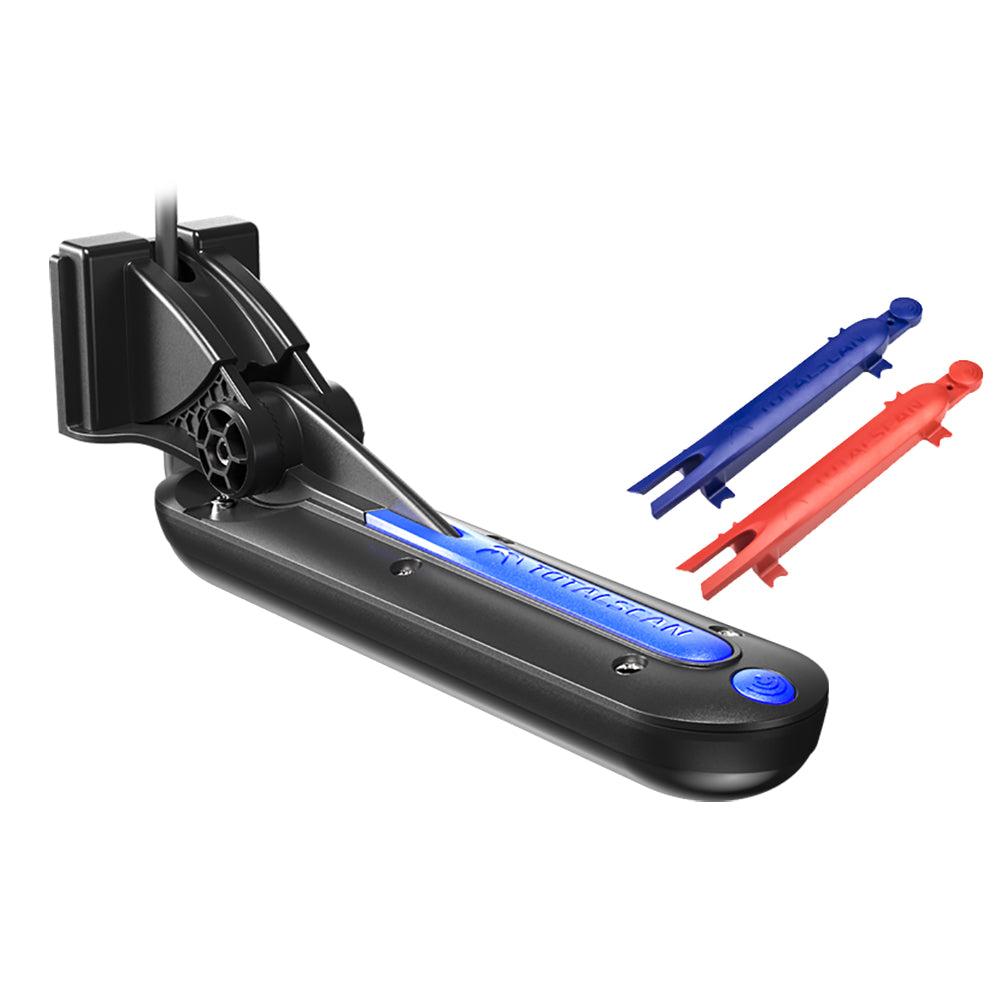

Lowrance TotalScan Skimmer Transom Mount Transducer [000-12568-001]

Lowrance  |  SKU: HS-58340
$301.99 $343.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

TotalScan™ Transom Mount transducer

An all-in-one transducer that matches proven CHIRP sonar with StructureScan® HD and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.

The TotalScan transducer features multiple mounting options and is fully compatible with displays featuring integrated StructureScan HD, like Lowrance HDS Gen3, Elite-7 Ti, Elite-5 Ti, Simrad NSS evo2, and NSO evo2.

The TotalScan transducer is one of four new transducers that feature the new xSonic (9-pin black) 24ft cable.

An adapter cable will be available to connect xSonic (9-pin black) transducers to legacy displays that have a 7-pin blue connector.

Note: When a TotalScan transducer is connected to a legacy display with a 7-pin blue connector, the side-scanning feature will not function.

Features

  • All-in-one transducer featuring CHIRP Sonar, StructureScan HD and DownScan Imaging
  • Also supports 83/200kHz Broadband Sounder frequencies
  • Supports Medium and High CHIRP Sonar frequencies
  • Supports 455/800kHz StructureScan HD frequencies
  • Multiple mounting options
  • Fully compatible with Lowrance HDS Gen3, Elite-7Ti, Elite-5Ti, Simrad NSS evo2, and NSO evo2
  • Compatible with select legacy displays (Requires xSonic transducer adapter - side-scanning sonar not supported on legacy products)

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Pins: 9
  • Mounting Style: Transom
  • Imaging: Standard/Down/Side
  • Chirp: Medium/High
  • Cable Length (Feet): 24'
  • Box Dimensions: 3"H x 10"W x 13"L WT: 3.25 lbs
  • UPC: 9420024145265
