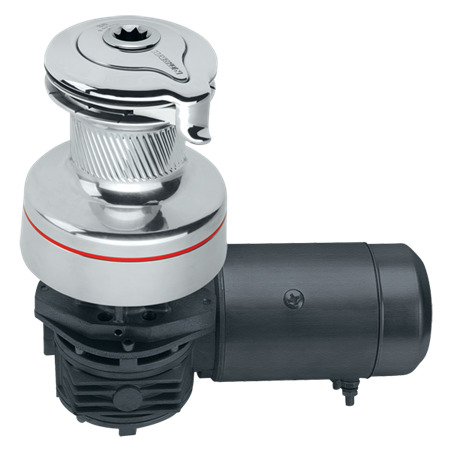

Harken #60 Electric Self-Tailing Radial All-Chrome Winch - 3 Speed
Harken #60 Electric Self-Tailing Radial All-Chrome Winch - 3 Speed - Horizontal 12V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Description
Description
Product Description

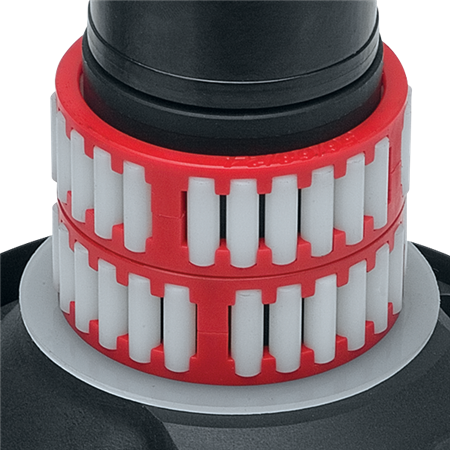

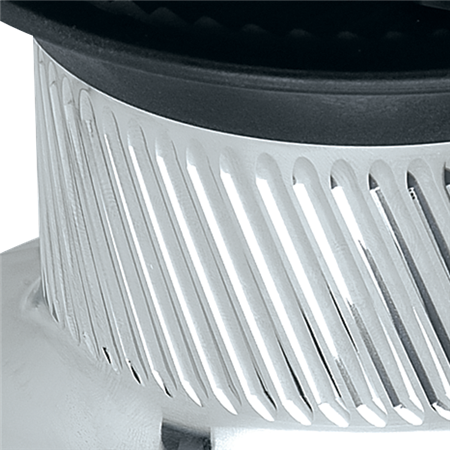

Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Specifications:
| Height (mm) | 253 mm |
| Height (in) | 9 3/8 in |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Number of fasteners | 6 |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 204 mm |
| Fastener circle (in) | 8 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Self-tailing |
| Speed | 3 |
| Drum Ø (mm) | 120 mm |
| Drum Ø (in) | 4 3/4 in |
| Base Ø (mm) | 236 mm |
| Base Ø (in) | 9 5/16 in |
| Line entry height (mm) | 116 mm |
| Line entry height (in) | 4 9/16 in |
| Gear ratio - 1 | 2.20 |
| Gear ratio - 2 | 4.80 |
| Gear ratio - 3 | 14.40 |
| Power ratio - 1 | 9.20 |
| Power ratio - 2 | 20.30 |
| Power ratio - 3 | 61.00 |
| Material | All-Chrome |
