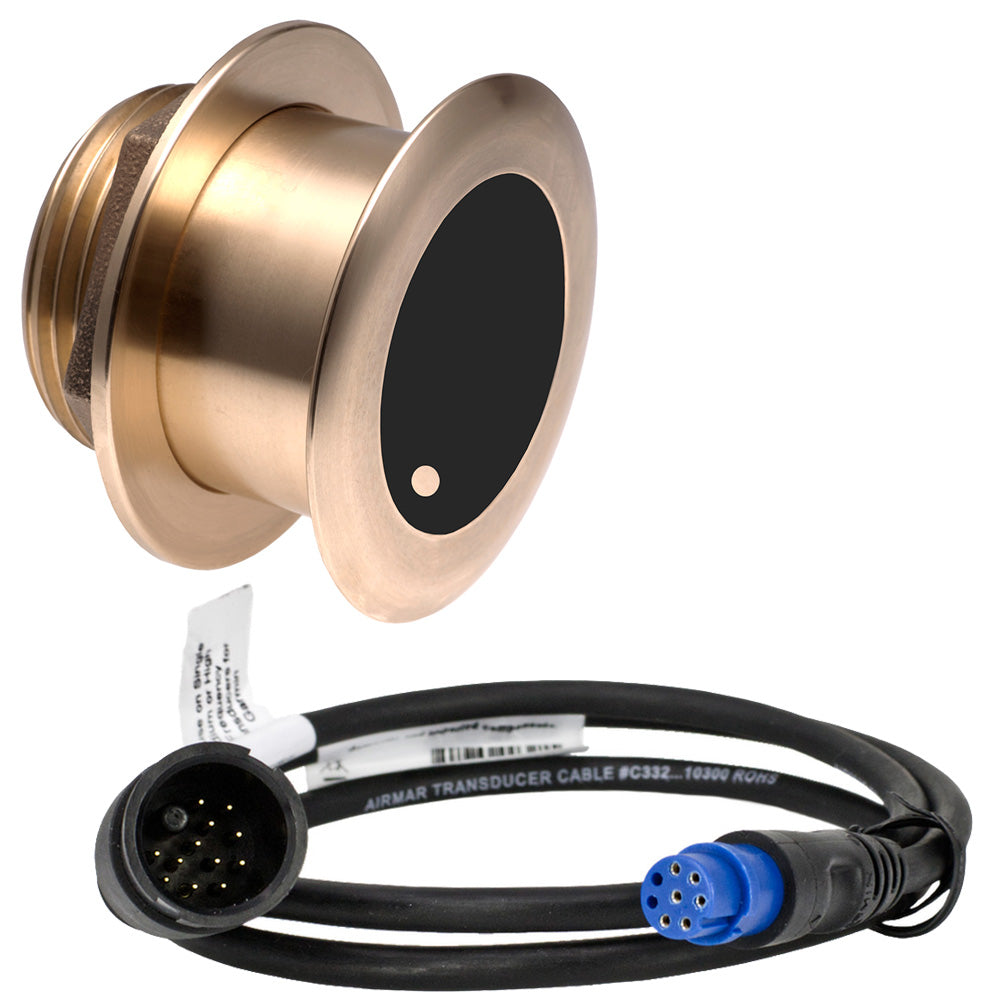

Airmar B175L Bronze 20 Degree Thru-Hull 1kW f/Garmin w/8-Pin Connector [B175C-20-L-8G]
Airmar B175L Bronze 20 Degree Thru-Hull 1kW f/Garmin w/8-Pin Connector [B175C-20-L-8G] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Description
Description
B175L Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin Connector
Airmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.
Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.
Features:
- Garmin 8-Pin Mix & Match Cable for Chirp Transducers
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance
- Low frequency: 40 to 60 kHz
- 32° to 21° beamwidth
- Maximum depth of 762 m (2500')
- Low-profile, thru-hull housing provides good display resolution at speed when installed properly
- Recommended for stepped, planing, or displacement hull
- Bronze housing for use in a fiberglass or wood hull
- Also available in a stainless steel housing (SS175L) for use with all hull materials
- Patented Xducer ID® technology
Specifications:
- Power Rating: 1 kW
- Max Deadrise Angle: 24°
- Housing: Bronze
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 11 m (36')
- Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
- Usable Shaft Length: 71 mm (2.80")
- Mounting Style: Tilted Element Thru-Hull
- Acoustic Window: Urethane
- Common Use: Fishing
- Low Frequency: 40-60 kHz
- Low Frequency Beamwidth: 32°-21°
- Max Deadrise: Up to 24°
- Max Depth: 762 m (2500')
- Retractable housing: No
- Single or Dual Frequency: CHIRP-Ready Single-Band
- Tilted Element: Yes
- Weight: 2.7 kg (6 lbs.)
