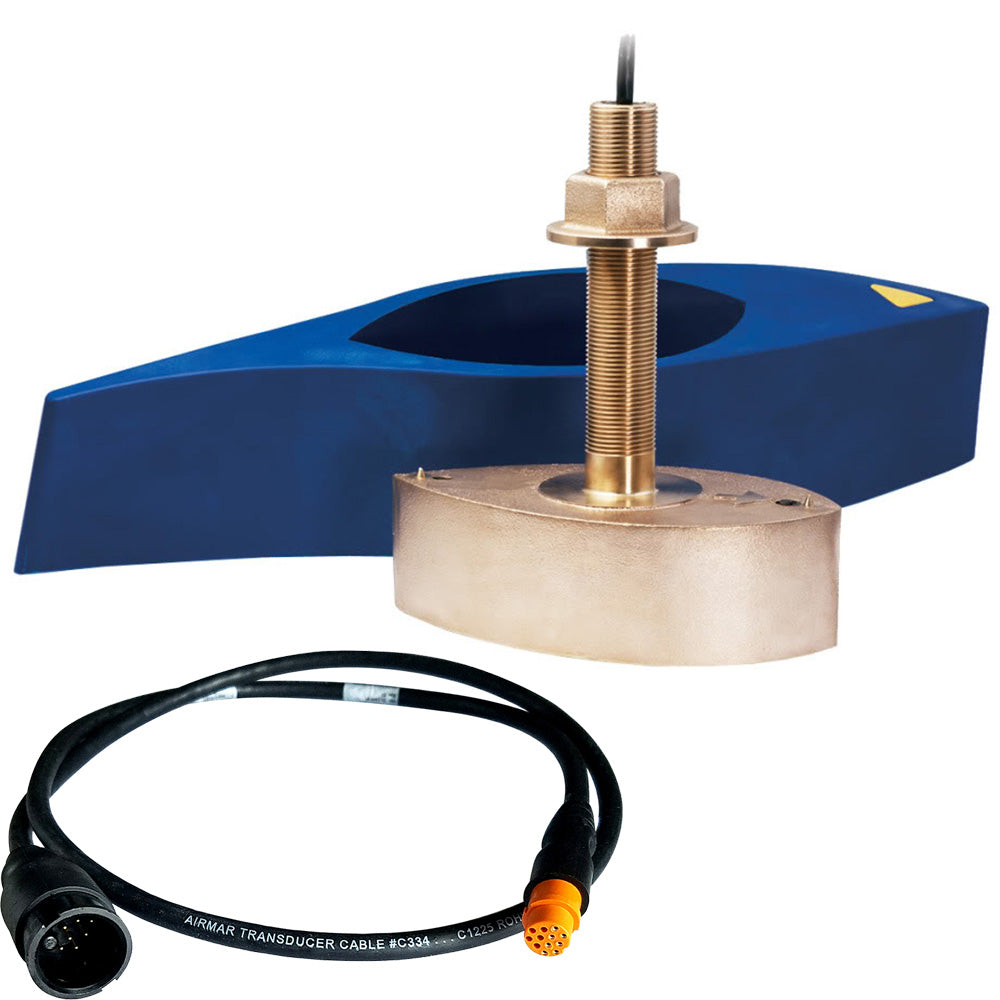

Airmar B275LH-W Bronze Chirp Thru-Hull f/Garmin w/12-Pin Connector [B275C-LHW-12G]
Airmar B275LH-W Bronze Chirp Thru-Hull f/Garmin w/12-Pin Connector [B275C-LHW-12G] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Description
Description
B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector
Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.
The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).
Features:
- Garmin 12-Pin Mix & Match Cable for Chirp Transducers
- Depth and fast-response water-temperature sensing
- 1KW of power for great deep-water performance from the low frequency
- Low frequency: 42 to 65 kHz
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- High frequency: 150 to 250 kHz
- 25° constant beamwidth
- Maximum depth of 152 m (500')
- 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper water column
- Bronze housing with High-performance Fairing for optimal performance at higher speeds
- Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
- Patented Xducer ID® technology
Specifications
- Brand: Airmar Technology
- Acoustic Window: Urethane
- Cable-Length: 10 m (33')
- Common Use: Fishing, Commercial Fishing
- Connector: Garmin 12-Pin
- Country of Origin: USA
- Cross Reference: 010-12183-20
- Deadrise Range: Up to 28° with fairing
- Display Connector: 12G
- Frequency Band: Low-High Wide
- High Frequency: 150-250 kHz
- High-Wide Beamwidth: 25°
- Low Frequency: 42-65 kHz
- Low Frequency Beamwidth: 25°-16°
- Material: Bronze
- Max Deadrise: Up to 20° with fairing
- Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500')
- Mix and Match Series: 12-Pin Chirp
- Sensor Connector: MMC
- Single or Dual Frequency: CHIRP-Ready Dual-Band
- Tilted Element: No
- Weight: 7.3 kg (16 lbs.)
- Power Rating: 1 kW
- Max Deadrise Angle: 20°
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Mounting Style: Thru-Hull with Fairing
- Max Vessel LOA: 8 m (25') and above
- Hole Size: 30 mm (1-3/16")
- Usable Shaft Length: 121 mm (4.75")
