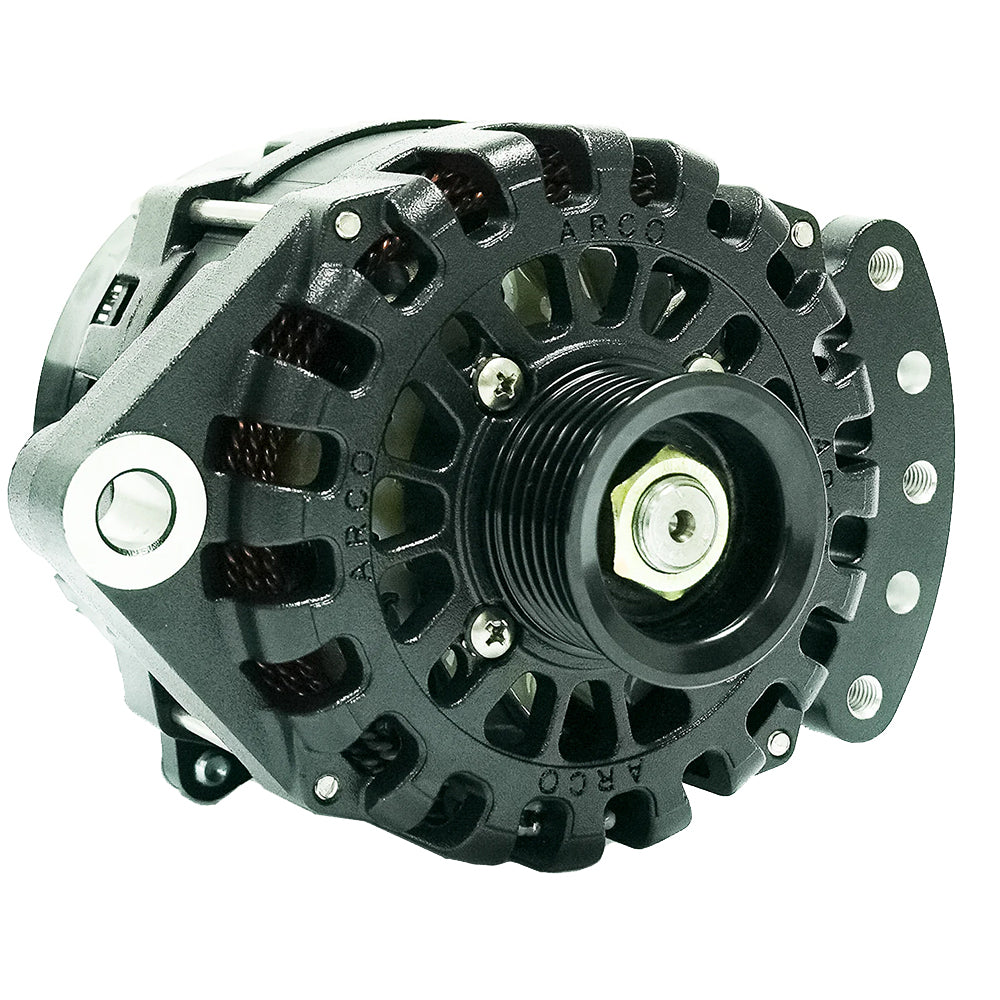

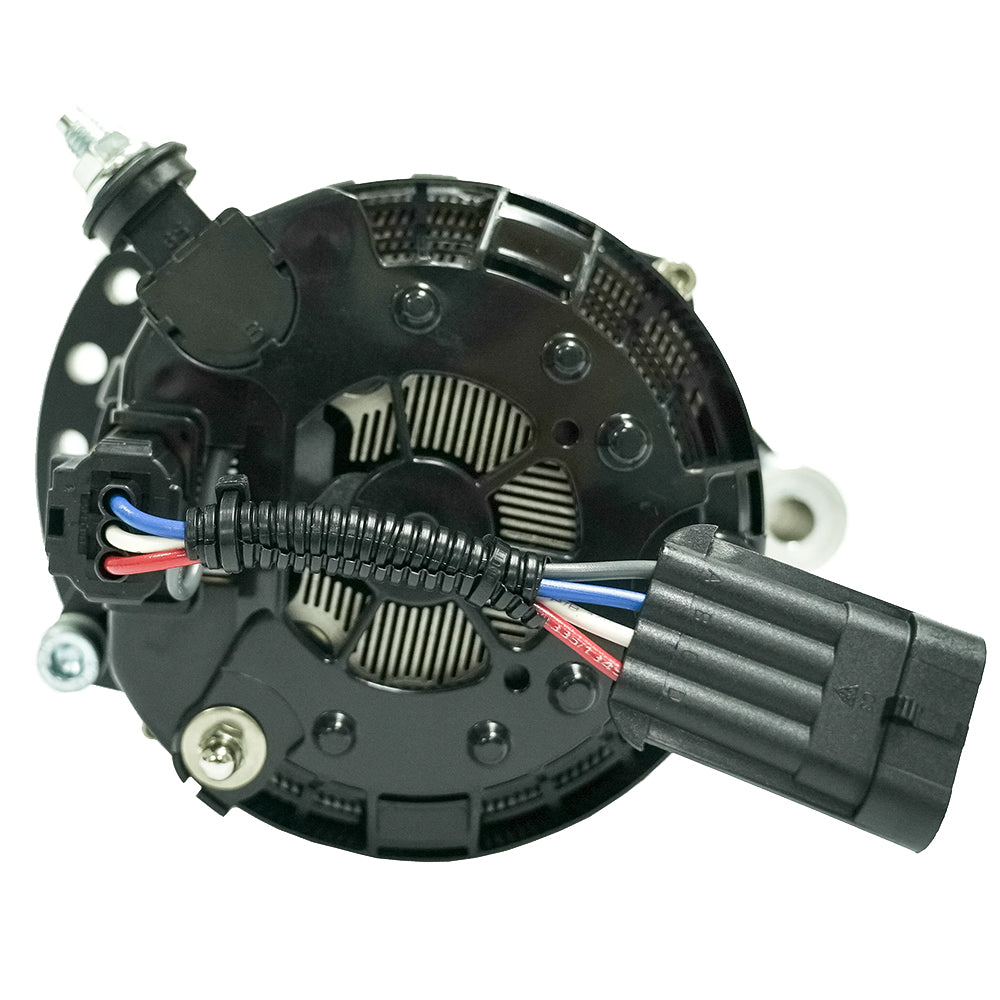

ARCO Marine Zeus A225S 1"-2" Single Foot Alternator w/Isolated Ground Regulator [4016]
ARCO Marine Zeus A225S 1"-2" Single Foot Alternator w/Isolated Ground Regulator [4016] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Description
Description
Zeus A225S 1"-2" Single Foot Alternator with Isolated Ground & Regulator
The highest power output alternator in its size/class.
Features:
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance, running 8-20% cooler than incumbent alternators due to:
- Heat shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler for sustained amperage output.
- Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
- SAE J1171 Certified.
- Models are available with an internal/external voltage regulator.
- Proudly made in the U.S.A.
Technical Specifications:
- Voltage - 12v
- Field Type - P
- Rotor Poles - 16
- Stator Size - 130mm
- Frame Size - Small
- Weight - 12 lbs/5.4 kg
- Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
- Output Voltage - 14.1v (Default)
- Finish - (Black) Cerakote or E-coating
- Cut-In RPM - 1,061 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) - 254 Amps
- Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
- Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps
- Max Continuous Operating Temperature - 110°C / 230°F
Mounting Application:
- Replaces most domestic styles using a single 1" or 2" mounting foot (e.g., Motorola, Prestolite). Requires Standard single "V" belt upgrading to a double "V" belt or Serpentine System
