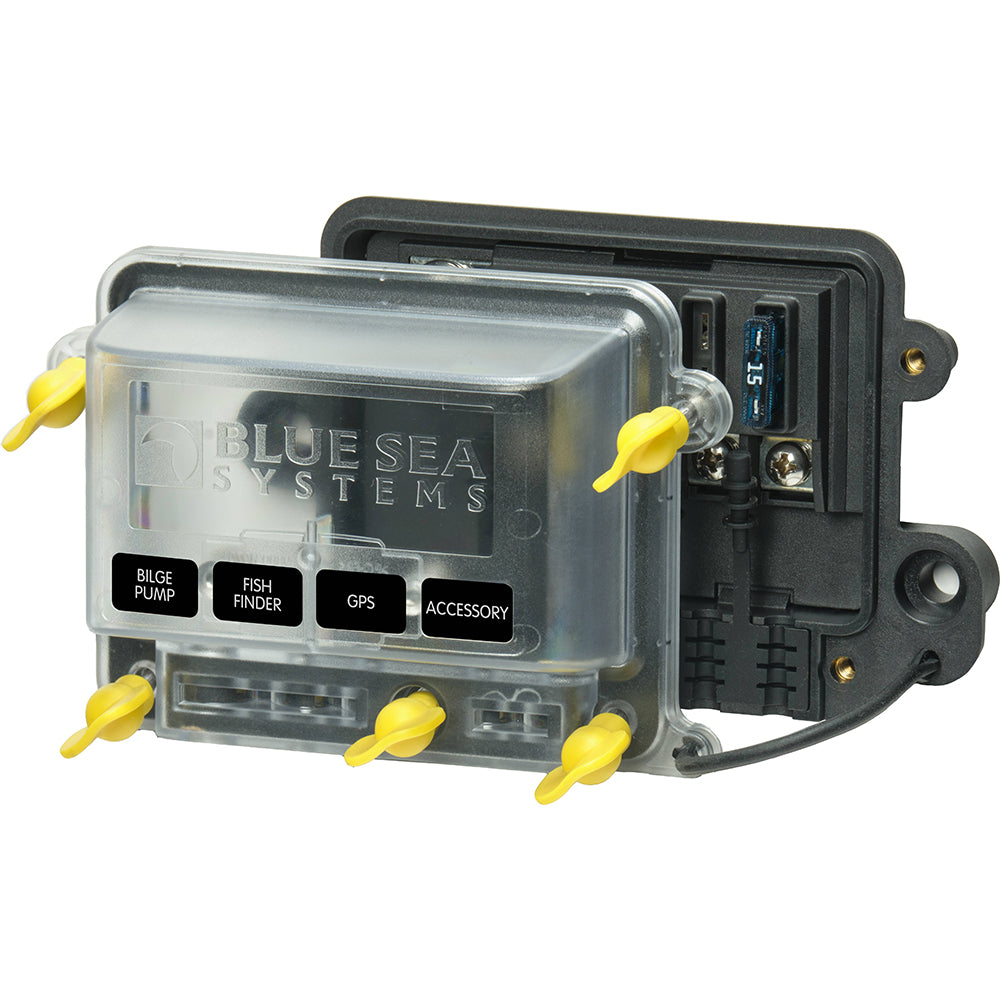

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover [5056100]
Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover [5056100] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover [505...
Description
Description
5056100 - Water Resistant ST-Blade Fuse Block with Cover
This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Now with wing screws for toolless access.
Features:
- Water-resistant design with a standard ring or spade-type terminals
- Allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
- Accepts ATO and ATC fast acting blade fuses
- Accepts ATO/ATC-Style Low Profile Circuit Breakers
- Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
- 5056100 meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Spare fuse and fastener storage in cover
- Wing screws designed for tool-free installation of cover to meet ABYC compliance
Technical Specifications:
- Cover - yes
- Maximum Voltage - 32V DC
- Bus Material - Tin-plated Copper
- Mounting Holes - Accepts 1/4" (6mm) screws
- Terminal Screws - 4 x # 8-32 with captive star lock washer
- Wire Size - Input - (1) 8 AWG to 4 AWG
- Wire Size - Load - (4) 16 AWG to 10 AWG
In the Box:
- 5056100 Busbar
- Instruction Manual
*Sold as an Individual
Quick Guide (pdf)
