Blue Sea Systems  |  SKU: HS-40613

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series [7085]

$54.99 $89.99

Payment

  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

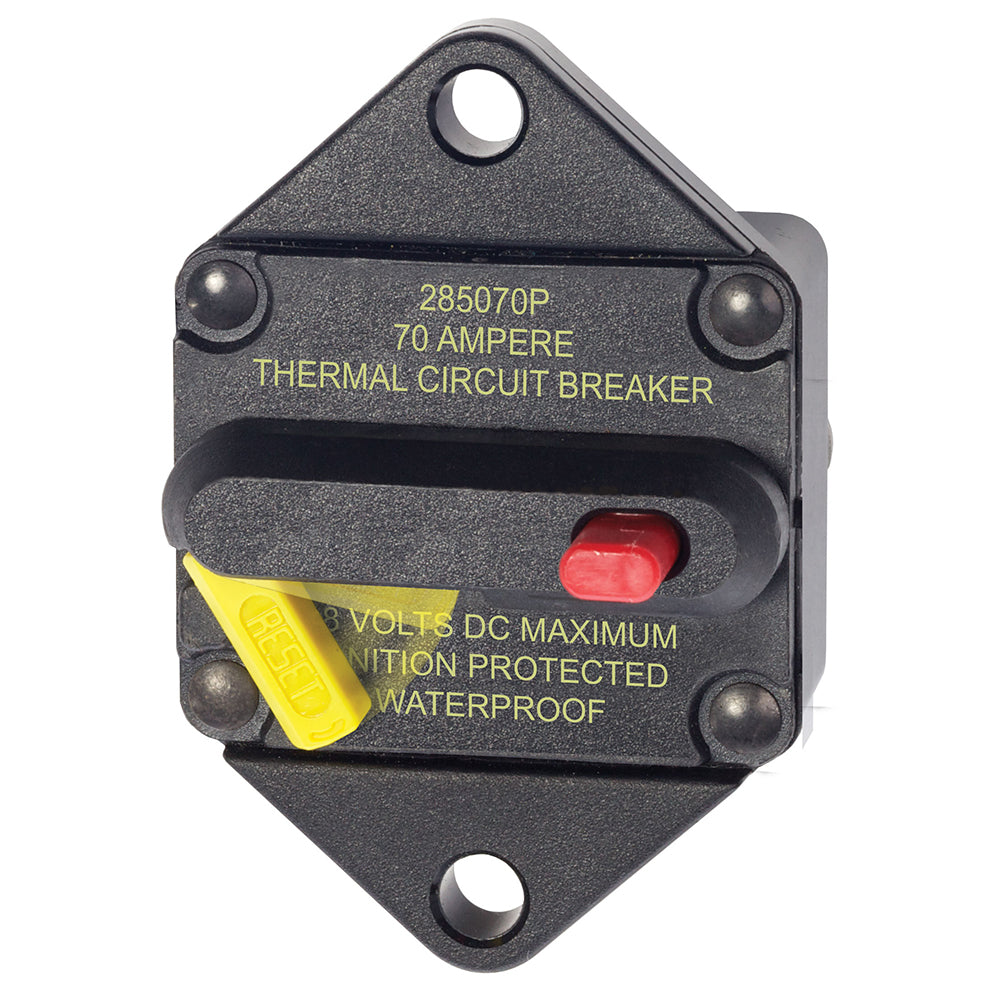

285-Series Thermal Circuit Breaker Panel Mount - 70A
Part#7085

  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit
  • "Trip Free" - cannot be held closed after trip


* Do not use for direct control of high inrush loads such as motor starting.

Specifications

Interrupt Rating 3,000A @ 48V DC*
Maximum Voltage Rating 48 Volts DC
Operating Temperature Range -40°C to 85°C
Circuit Breaker Type Thermally Responsive Bi-metal blade
Circuit Breaker Class Type III - Switchable / Manual Reset - Trip Free
Terminal Stud Size M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque 50 in-lb
Mounting Holes Accept 1/4" (M6) screw
Weight Lb (Kg) 0.33 lb (0.15 kg)

* AIC ratings achieved using SAE J1625

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 70a
  • Box Dimensions: 2"H x 5"W x 9"L WT: 0.3 lbs
  • UPC: 632085070854

Brochure (pdf)
