![Flojet VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI [Q352F-16N7-2P]](http://harbor-supply.com/cdn/shop/files/113663XL.jpg?v=1776052932&width=1500)

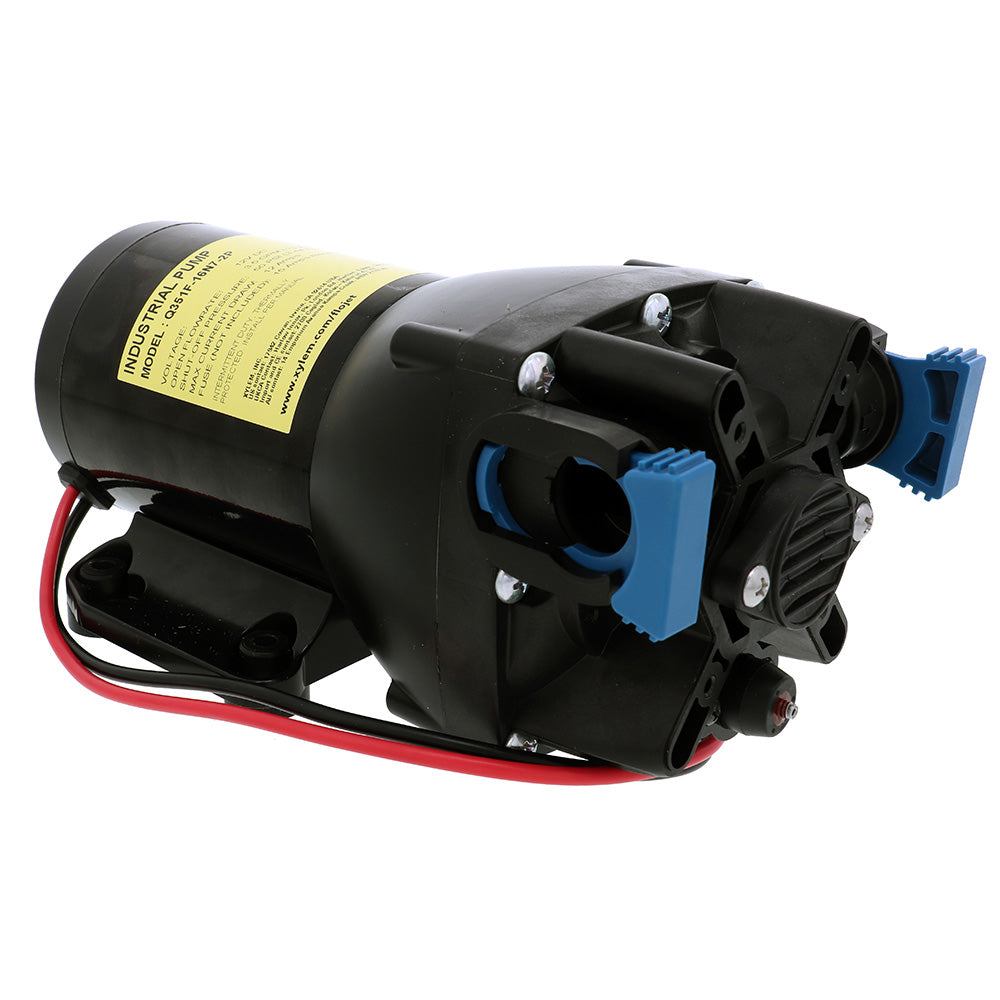

Flojet VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI [Q352F-16N7-2P]
Flojet VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI [Q352F-16N7-2P] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Flojet VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI [Q3...
Description
Description
VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI
Flojet VersiJet Series industrial diaphragm pump. It is engineered for durability and longevity. This Flojet pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing, and more! Glass-filled polypropylene hose is resistant to corrosion. Viton seals and a Santoprene diaphragm provide resistance to chemicals and corrosion. It has quick-connect ports and includes two 1/2" straight hose barbs.
Features:
- Heavy-duty, coated motor
- Long-life co-molded diaphragm
- Efficient, quiet operation
- Self-priming
- Runs dry without damage
- 4-chamber diaphragm
- Quick-connect ports
- TENV permanent magnet motor
- Noise-dampening baseplate
- Thermal motor protection (TCO)
Applications:
- Liquid Transfer
- Spraying
- Cooling
- Circulation
- Filtration
- Dispensing
Specifications:
- Product Number: Q352F-16N7-2P
- Port Fittings: 2 x 1/2" (13mm) straight hose barb
- Open Flow Rate: 3.5 GPM open flow (13.2 LPM)
- Pressure Switch Cut-Off: No switch
- Max Operating Pressure: 50 PSI (3.4 BAR)
- Max Inlet Pressure: 30 PSI (2.2 BAR)
- Internal Bypass: Yes
- Fluid Temperature Range: 32° F - 140° F (0° C - 60° C)
- Self-Priming Capability: Up to 8ft (2.4m) dry prime
- Run-Dry Capable: Yes
- Nominal Voltage: 24 VAC
- Max Current Draw: 5.3 Amps @ 50 PSI (3.4 BAR)
- Fuse Size: 7 Amps (not included)
- Duty Cycle: Intermittent
- Leads: 12" (305mm), 14 AWG (2.5mm^2)
- Wire Connection: Stripped wire
- Weight (pump only): 5.1 lbs.
Materials:
- Upper Housing: Glass-filled polypropylene
- Lower Housing: Cast aluminum
- Check Valve Retainer: Polypropylene
- Diaphragm: Santoprene
- Check Valves: Viton
- Switch diaphragm: Viton
- Bypass Diaphragm: Viton
- PH Seals: Viton
- PH Fasteners: Stainless steel
- Baseplate: Nylon with Rubber Feet
- Motor Casing: Cast aluminum; coated steel
