Lectrotab Standard Trim Tab Actuator - 12V - 28' Cable [A-BK-24]

Lectrotab  |  SKU: HS-113835
$229.99 $275.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

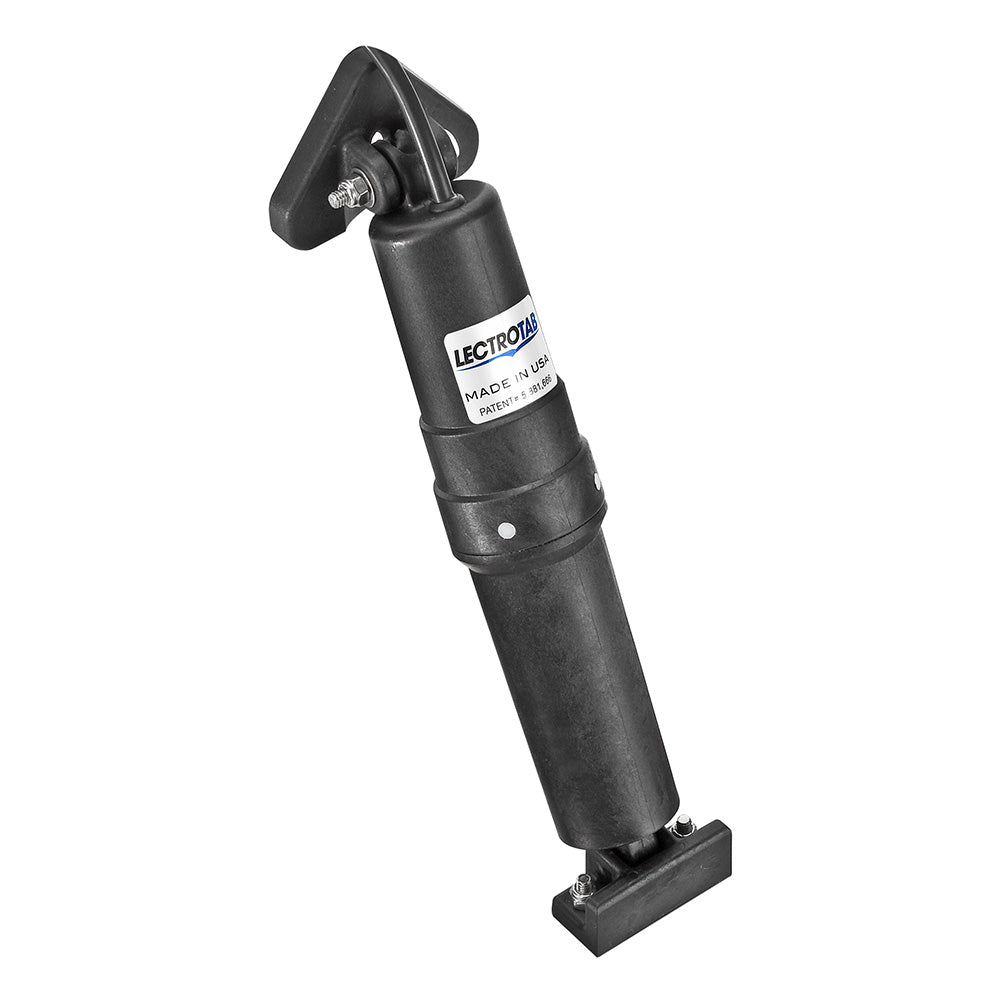

Standard Trim Tab Actuator - 12V - 28' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time or a 4-second stroke time.

Features:

  • Actuator DC Voltage - 12V
  • 28' Cable
  • The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
  • Utilizes an internal pressure equalization system
  • Upgrades to the most popular hydraulic and electromechanical systems
  • Internal brake system prevents unwanted tab movement when underway or backing down
  • Quiet operation
  • All actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater

Specifications:

  • Model: A-BK-24
  • DC Voltage: 12VDC
  • Stroke Length: 2.25"/57mm
  • Stroke Speed: 8 sec
  • Distance from Bolt to Pin: 11.5"/292mm
  • Vertical Height (Typical Installation Fully Retracted):11.875"/302mm
  • Cable Length (Feet/Meter): 28'/8.5m
  • Upper Mounting Bracket: Standard
  • Lower Mounting Bracket: Standard
  • Use Actuator with Tabs: All Tabs

*Sold as an Individual
