MONSTER MONITOR - FOCUS 19

Monster Marine Lithium  |  SKU: MML-F19MM-1
$3,000.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

**Note: Make sure to select correct gimbal bracket height size for your mounting location**

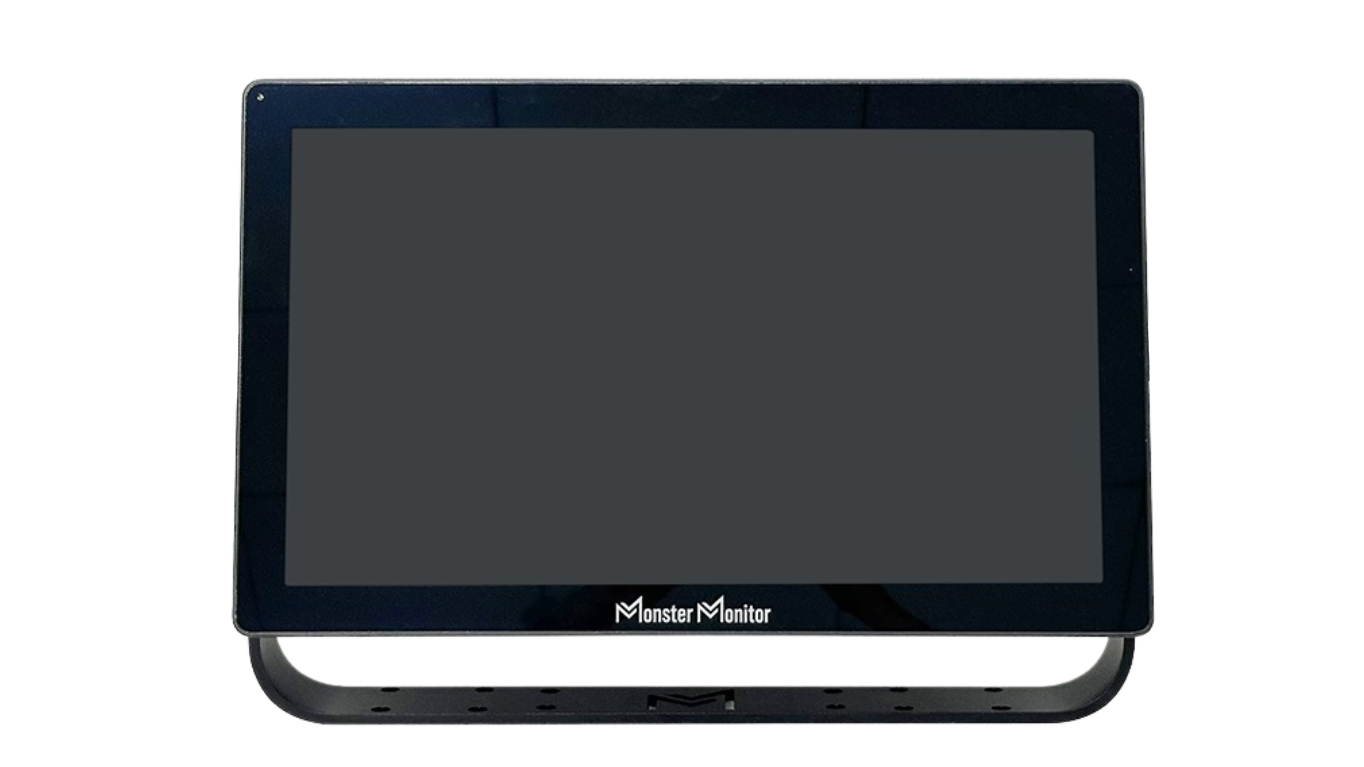

⚡ Monster Monitor Focus 19 – Marine Display

Model: Focus 19
Category: Professional Marine Touch Display Monitor

🧭 Overview

The Monster Monitor Focus 19 is engineered for anglers and captains who utilize  forward-facing sonar and real-time clarity in every condition.
Featuring a Full HD 1920×1080 resolution, 1500-nit daylight-viewable LCD, and vac-sealed optically bonded anti-reflective glass, the Focus 19 delivers exceptional visibility, contrast, and precision detail — even in harsh sunlight or rough water.

Built for seamless integration with Garmin head units, it can also connect with Lowrance and Humminbird systems (with varying feature compatibility as shown below).
With rugged IP67 waterproofing, a fanless all-aluminum housing, and marine-grade sealed ports, the Focus 19 is built to perform flawlessly season after season.

⚙️ Key Features

  • Brilliant 18.5” Full HD Display – 1920×1080 resolution with 1500 nits brightness for unmatched clarity in sunlight or shade.

  • 10-Point Capacitive Touchscreen – Smooth, glove-compatible responsiveness for easy menu navigation.

  • Vac Sealed Optically Bonded & Anti-Reflective – Reduces glare, prevents internal fogging, and enhances image sharpness.

  • True Marine-Grade Construction – All-aluminum housing with IP67 waterproof rating and fanless cooling for silent operation.

  • Smart Brightness Control – Automatic light sensor with manual brightness override.

  • Multiple Power Options – Operates from 9–36V DC with built-in protection and a 7.5A fuse requirement.

  • Universal Compatibility – HDMI and USB-A connections integrate easily with Garmin and other compatible head units.

  • Low Power Consumption – Efficient operation with <50W draw for extended run times.

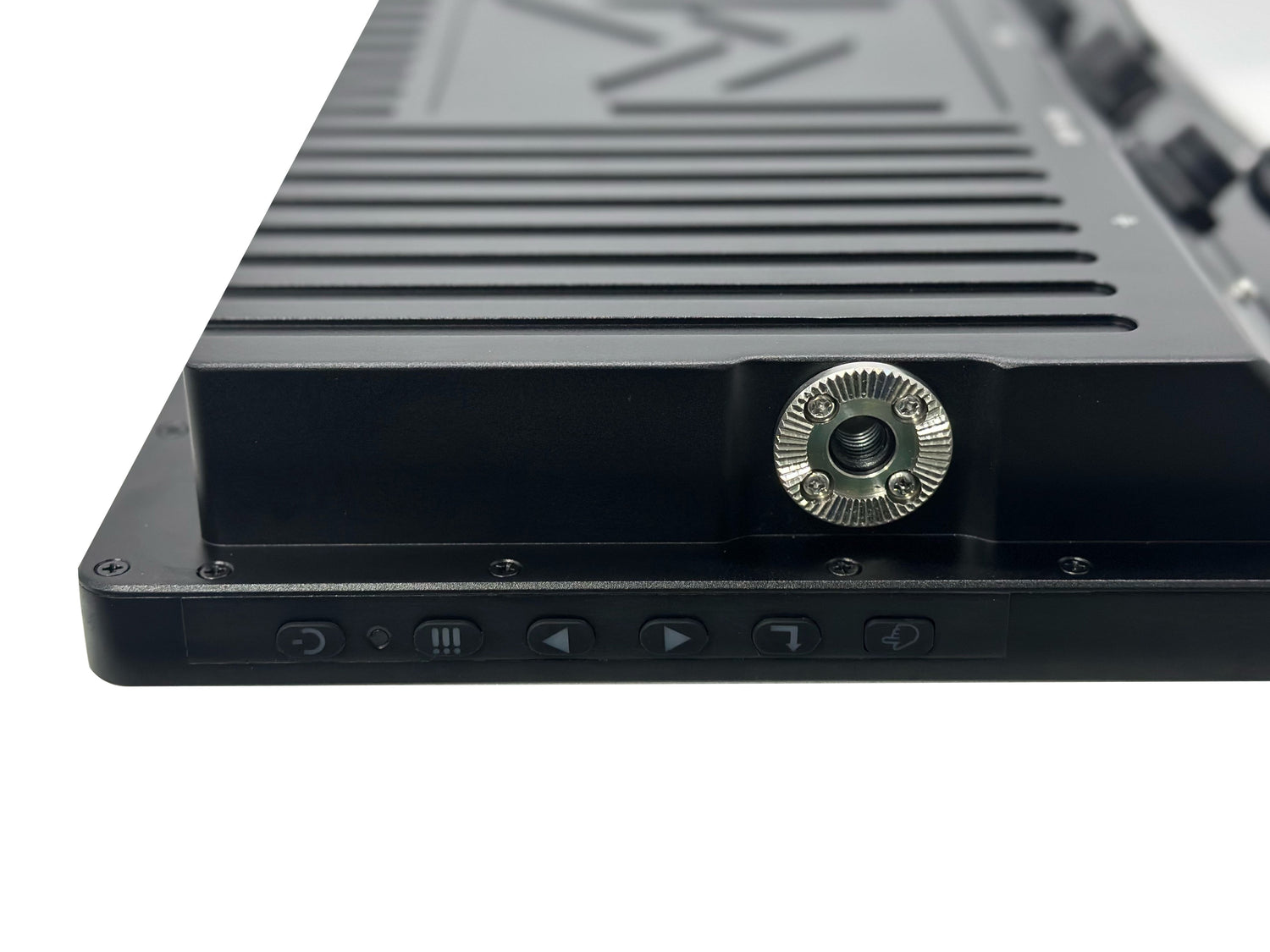

  • Touch Lockout Button – Enable or disable touch control for cleaning or wet conditions.

⚓ Installation & Mounting

The Focus 19 locks securely into its included cradle for stable viewing in any conditions.
Before installation, follow all safety guidelines — use the proper fuse, ensure correct grounding, and route cables carefully to prevent strain or sharp bends.
Install the display on land or when docked for best results.

📊 Technical Specifications

Category Specification
Panel Size 18.5”
Resolution 1920 × 1080 (Full HD)
Aspect Ratio 16:9
Brightness 1500 nits
Touch Type 10-point capacitive
Power Input 9–36V DC (7.5A fuse required)
Power Consumption Typical 3.4A / Max 4.2A
Connectivity HDMI (IP67), USB-A (IP67)
Brightness Control Auto-sensing / manual
Construction Fanless, IP67 waterproof
Surface Treatment Anti-reflective, 7H hardness
Net Weight 12.24 lbs (5.55 kg)
Operating Temp -20°C to 70°C (-4°F to 158°F)
Humidity Up to 100%

🧭 Compatible Systems

Garmin GPSMAP®   (mirror and touch)
8610 | 8612 | 8616 | 8412 | 8416 | 1623 | 1643 | 8700 box

9013 | 9213 | 9017 | 9217 (waterproof cables in production)

9010 | 9210 | 8410 | 8610 | 1223 touch | 1243 touch (different aspect ratio)

*9000 series usb c cables are currently in production

Garmin Echomap Ultra 2
162 | 166  (Mirror Only – No Touch Control)

Humminbird Apex  (Mirror Only – No Touch Control)
13 | 16 | 19 

Lowrance (yes call us to learn how to now)
Compatible units Coming Soon

HDMI & USB ports support full video and touch control.

⚡ Note: Power and ground circuits must include a properly rated fuse (required for warranty).

🔧 Warranty

The Monster Monitor Focus Series is backed by a 2-Year Limited Warranty, covering defects in materials and workmanship under normal use.
Damage caused by improper installation, misuse, or forced connections is not covered. See more info in warranty page.

For service or claims:
📧 monstermarinemonitors@gmail.com
📞 501-463-6545
(Subject line: Warranty Concern – Order #)

🟠 In the Box

  • Monster Monitor Focus 19 Display

  • IP67 HDMI Cable (26')

  • IP67 USB Cable (26')

  • Power Cable with Locking Ring (15')

  • Mounting Cradle & Hardware

  • User Manual & Quick Start Guide

💡 Why Choose Monster Monitor

Built specifically for Forward-Facing Sonar (FFS) optimization, the Focus 19 enhances target separation and sonar image detail with unmatched clarity and speed.
Whether scanning structure, chasing suspended fish, or running offshore, the Focus 19 delivers the precision visibility you need to stay ahead.
Stop Guessing. Start Seeing.
