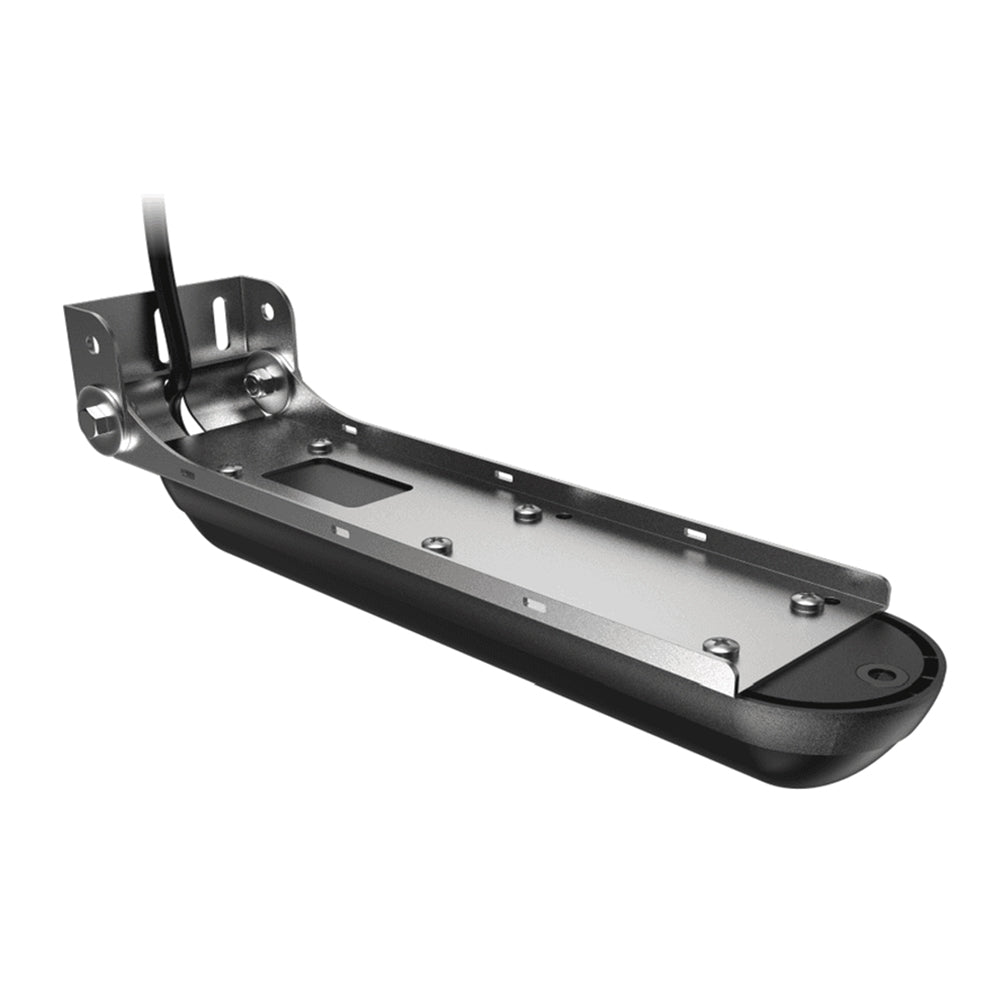

Navico Active Imaging 3-in-1 Transom Mount Transducer [000-14489-001]

Navico  |  SKU: HS-73324
$343.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

Active Imaging 3-in-1 Transom Mount Transducer

See structure and cover with a level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Key Features:

  • More refined detail and better range than any other imaging technology
  • Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan
  • Easier target identification with FishReveal™ Smart Target View
  • Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
  • Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and Simrad NSS evo3 and GO series displays

Environmental

  • Operating temperature: -15°C to +55°C (+5°F to +131°F)
  • Storage temperature: -30°C to +70°C (-22°F to +158°F)

Physical

  • Cable length:   7.6 m (25 ft)
  • Mounting options: Transom, flush step, and jackplate mounting
  • Connector: 9 pin

Transducer

  • Output: Traditional, SideScan imaging, DownScan imaging and temperature
  • Frequency: Traditional: 200 kHz/High : Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz
  • Max depth: Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft)
  • Operating speed: Traditional: 48 knots (55 mph): DownScan and SideScan: 9 knots (10 mph)

Specifications:

  • Pins: 9
  • Mounting Style: Transom
  • Imaging: Standard/Down/Side
  • Temperature: Yes
  • Speed Included: No
  • Chirp: Medium/High
  • Cable Length (Feet): 25'
  • Box Dimensions: 4"H x 10"W x 14"L WT: 3.6 lbs
  • UPC: 9420024172773
