Navico xSonic SS75H Depth/Temperature Transducer 12 - 9-Pin - 600W - 10M Cable [000-13912-001]

Navico  |  SKU: HS-67028
$921.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

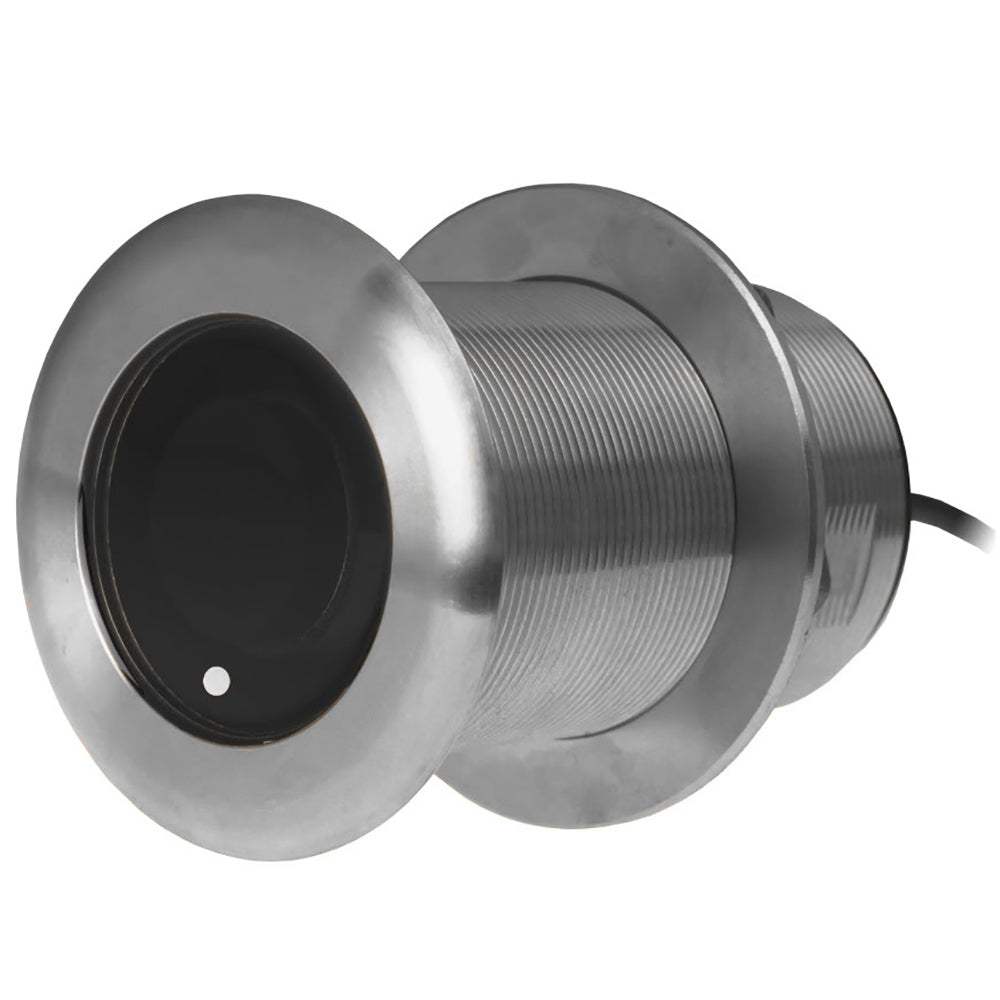

xSonic SS75H Depth/Temperature Transducer 12° - 9-Pin - 600W - 10M Cable

The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features:

  • CHIRP - CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
  • Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
  • Easy To Install
  • High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
  • Highly Accurate - Provides extremely accurate data.
  • 12° Tilt - The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
  • Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull.
  • Plug & Play Connection - Easily connect to NSSevo3, Lowrance

Specifications:

  • Frequency: High CHIRP (130-210kHz)
  • Power Rating: 600W
  • Speed Sensor: No
  • Temperature Sensor: Yes
  • Mounting Style: Bronze Thru-Hull
  • Elements: 1
  • Beamwidth @ -3dB: 15° to 9°

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Chirp: High
  • Cable Length (Feet): 33'
  • Pins: 9
  • Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs
  • UPC: 9420024162675
