Peguet 6mm (1/4") Galvanized Steel Eyelet Maillon Rapide Quick Link
Peguet | SKU:
E-060-GS
$9.99
$16.65
Unit price
/
Unavailable
Peguet 6mm (1/4") Galvanized Steel Eyelet Maillon Rapide Quick Link is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Peguet 6mm (1/4") Galvanized Steel Eyelet Maillon Rapide Quick...
$9.99
$16.65
Unit price
/
Unavailable
Description
Description
Product Description

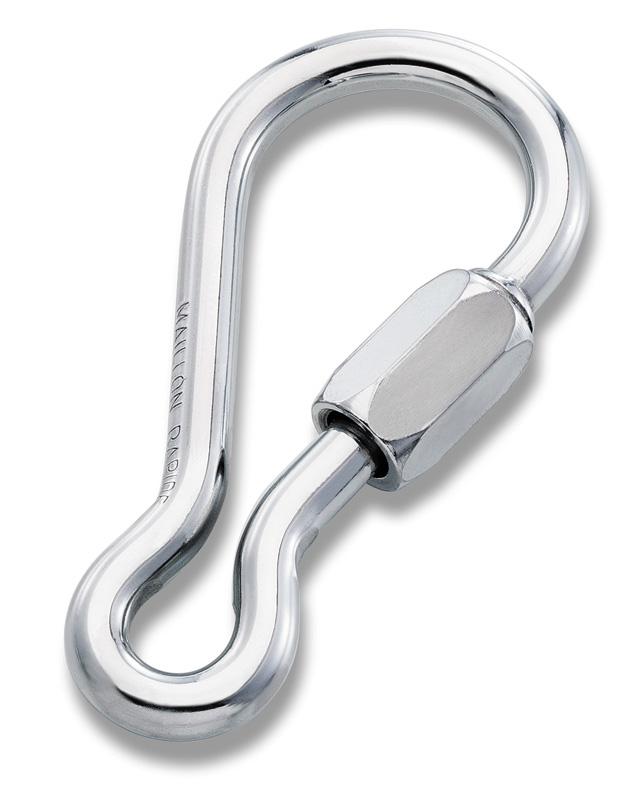

Peguet 6mm (1/4") Galvanized Steel Eyelet Maillon Rapide Quick Link
Eyelet shape: wire rope may be kept into the lower ring for a permanent connection.
Specifications:
Diameter: 6MM or 1/4"
LT: 39mm
LI: 27mm
LO: 21.5mm
HT: 80mm
Eyelet shape: wire rope may be kept into the lower ring for a permanent connection.
Specifications:
Diameter: 6MM or 1/4"
LT: 39mm
LI: 27mm
LO: 21.5mm
HT: 80mm
HI: 68mm
O: 7.5mm
R1: 4.75mm
R2: 13.5mm
E: 19mm
T: 9mm
Weight: 46 g (0.1014 lbs)
Safe Working Load: 200 kg (440 lbs)
Breaking Load: 1,000 kg (2,200 lbs)
Material:
Zinc plated steel
Rod: Steel FM-8, Standard AFNOR 35-051, EN10016-2
Nut: Steel A-42-FM, 11 SMR 30 (1.0715), EN 10087
Rod: custom-made steel used in surface processing, providing complete strength towards traction.
Nut: high safety steel (lead-free, systematic control carried out after drawing through Eddy currents and ultrasounds).
Surface processing made through electrolytic coating on the entire material (rod & nut).
Tightening Torque:
ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0
Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00
Recommendation:
Keep to the working load limit WLL engraved in kg.
Visual check of complete nut screwing compulsory; no thread must be showing.
Maillon Rapide quick links are only to be loaded along the major axis.
Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.
When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.
Maillon Rapide should always be fitted with parts made of same material.
When connected with chain, Maillon Rapide quick links should be of the same diameter.
Never connnect any Maillon Rapide quick links onto a lifting chain.
Stainless steel Maillon Rapide quick links may be used in salt water.
P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
