Pro-Guide 2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 30-Amp [PGC-1236X]

Pro-Guide Batteries  |  SKU: HS-113651
$499.99

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 30-Amp

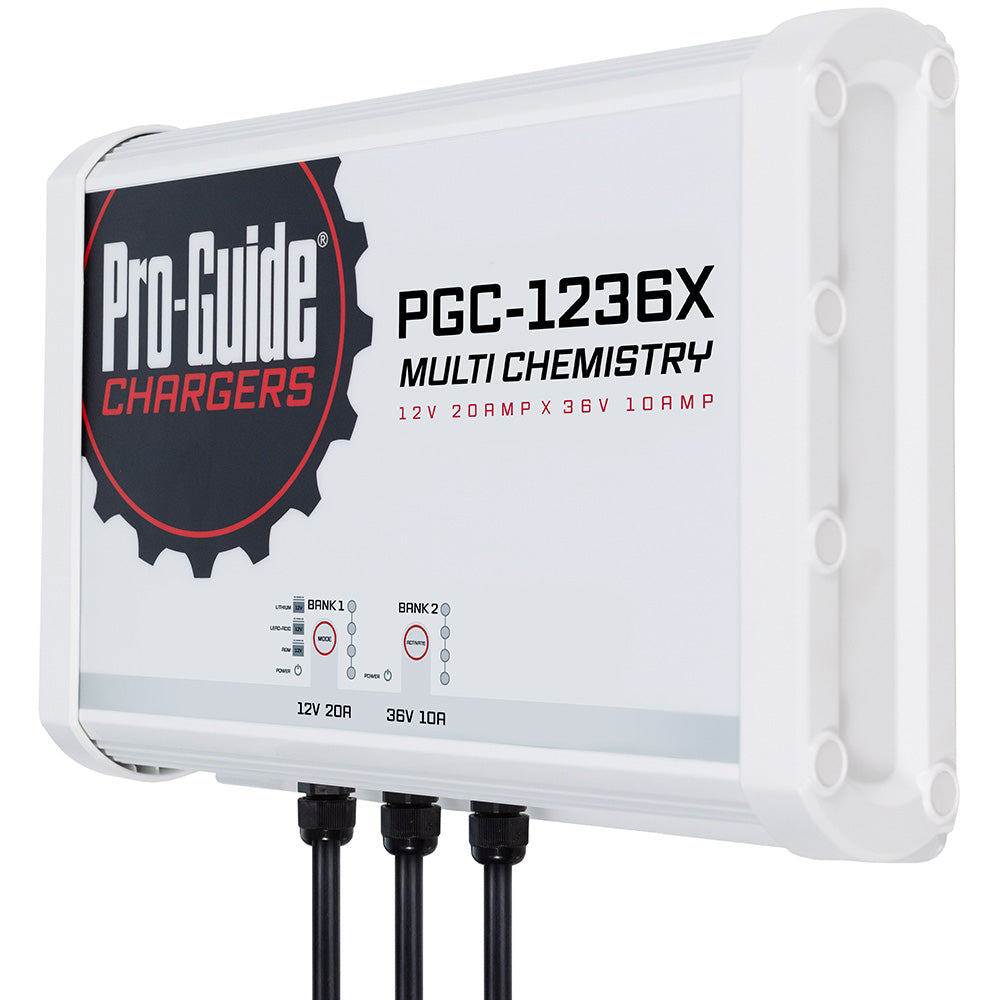

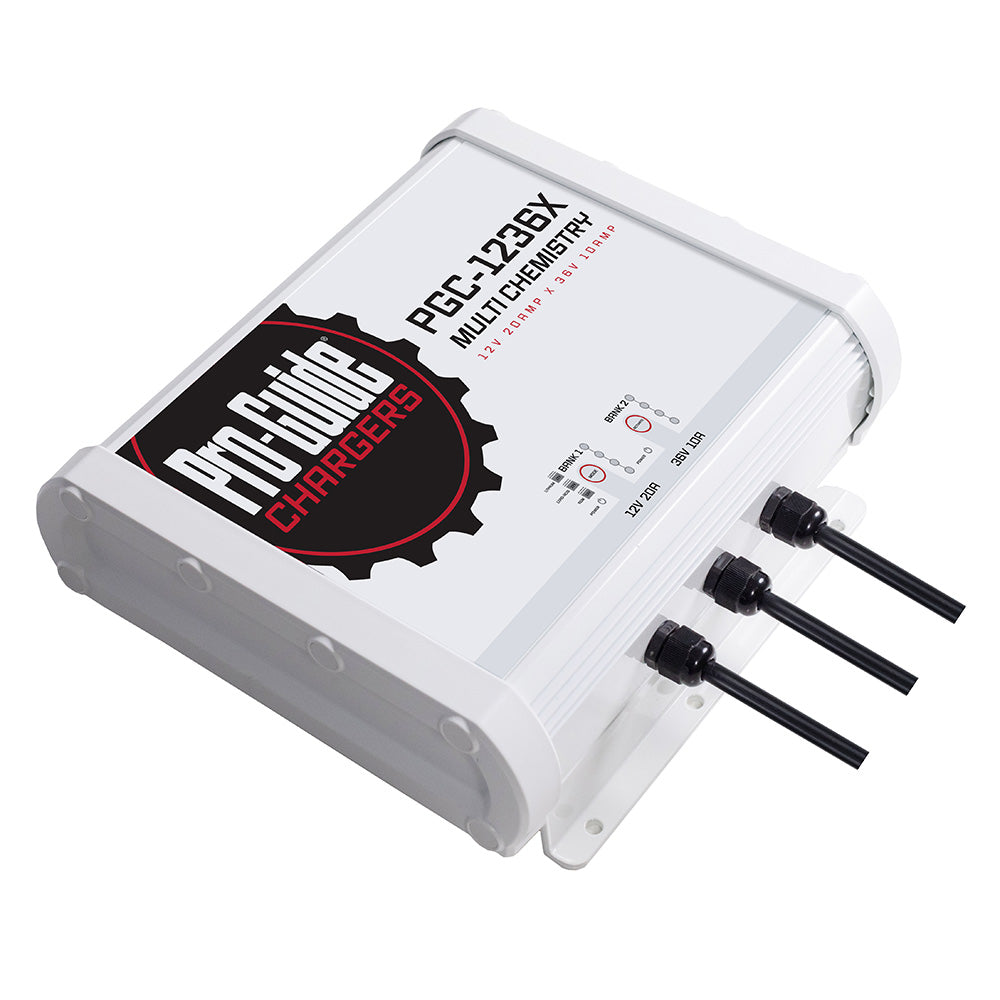

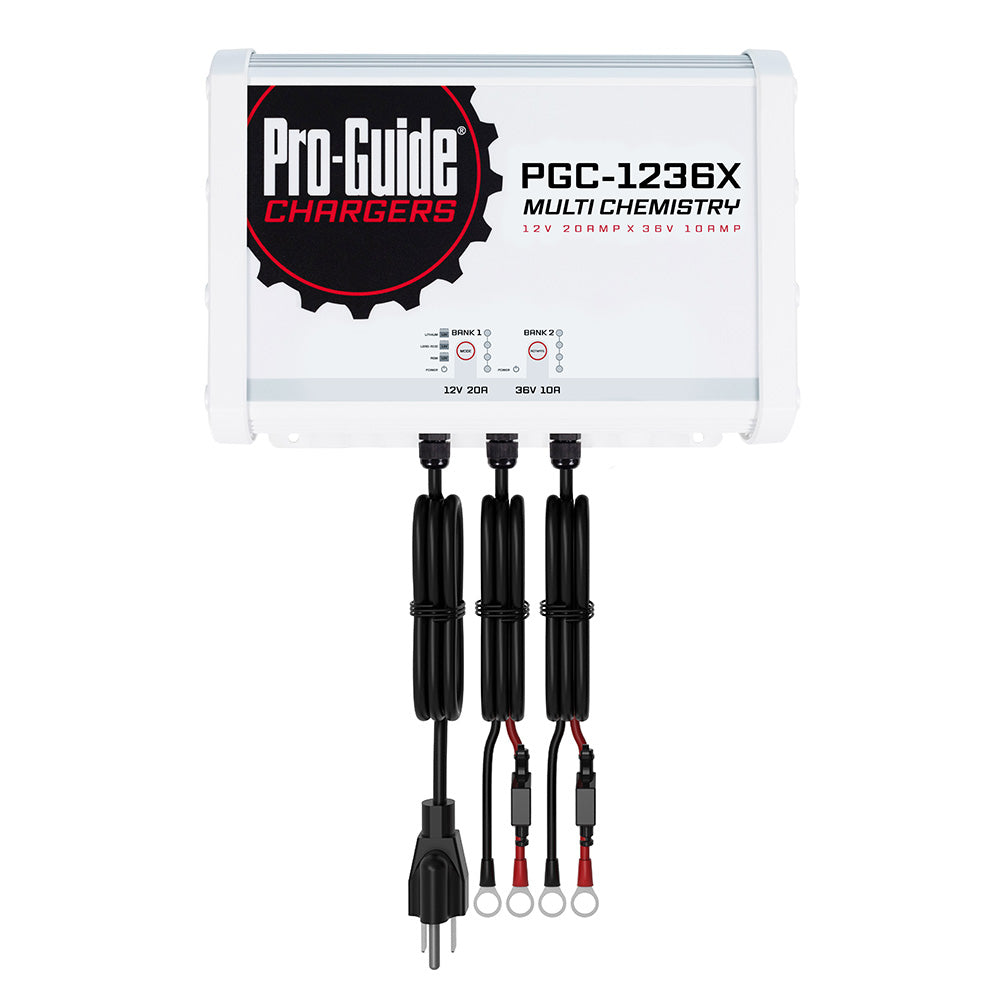

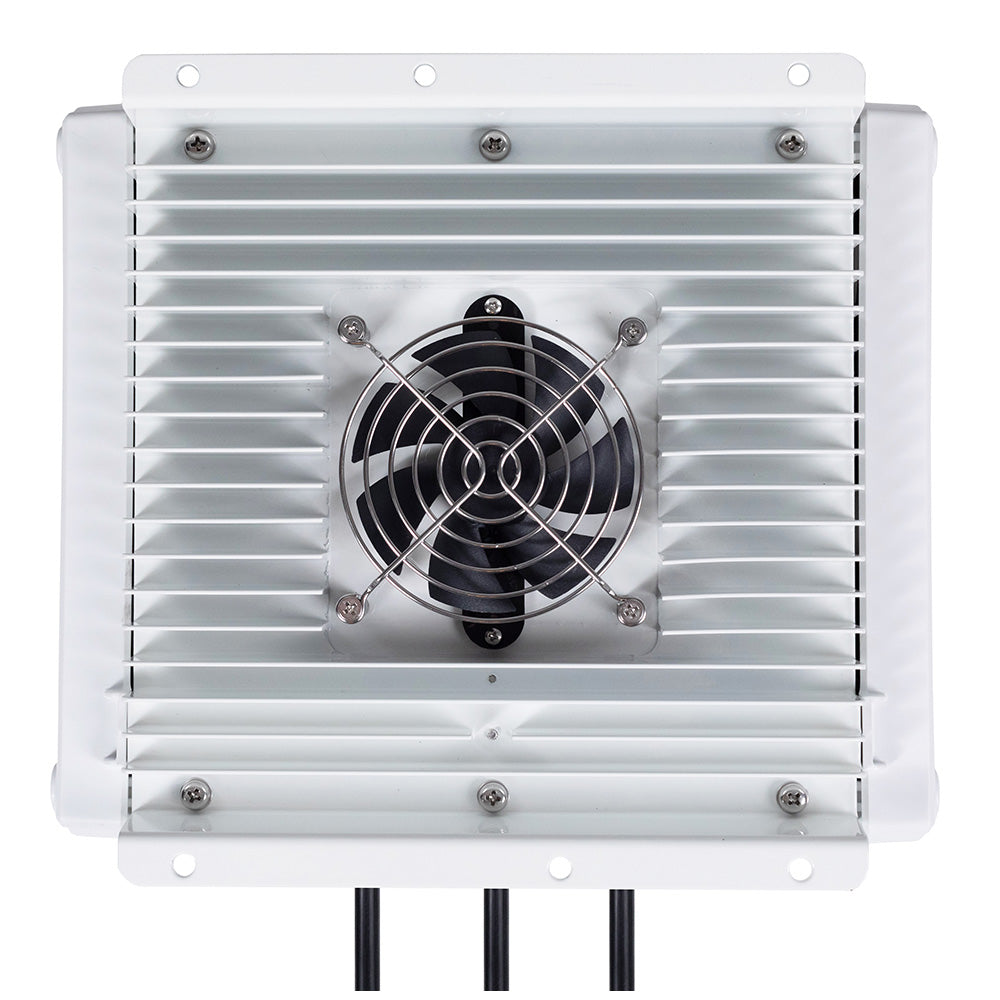

The Pro-Guide PGC-1236x is a 12V Lead Acid / AGM / Lithium & 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

  • Output Over-Voltage
  • Output Over Current
  • Output Short Circuit
  • Output Reverse Polarity
  • Over Temperature

Input:

  • Input Voltage: AC 110-120V
  • Frequency: 60Hz
  • Input Current: <6A

Specifications:

  • Battery Type: 12V Lead Acid/AGM/Lithium & 36V Lithium
  • Output Voltage: DC 12V x 1 & DC 36V x 1
  • Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery & 43-44 for 36V Lithium Battery
  • Output Current: 20A for 12V Bank & 10A for 36V Bank
  • Length: 13.15"
  • Width: 9.96"
  • Height: 3.86"
  • Weight: 24.3 lbs
  • IP Rating: 68

Specifications:

  • Charger Input - Voltage: 120v
  • Charger Output - Amps: 30a
  • Charger Output Voltage: (1)12v / (1)36v
  • Charging Banks: 2
  • Portable: No
  • Box Dimensions: 8"H x 13"W x 17"L WT: 22.1 lbs
  • UPC: 810145911198
