![Shadow-Caster Light Commander Version 2 - 6-Zone Lighting Controller w/Bluetooth/Wi-Fi, NMEA 2000 HTML Ethernet Connectivity [SCM-LC-N2K-PLUS-V2]](http://harbor-supply.com/cdn/shop/files/102373XL.jpg?v=1741900647&width=1500)
Shadow-Caster Light Commander Version 2 - 6-Zone Lighting Controller w/Bluetooth/Wi-Fi, NMEA 2000 HTML Ethernet Connectivity [SCM-LC-N2K-PLUS-V2]
Shadow-Caster Light Commander Version 2 - 6-Zone Lighting Controller w/Bluetooth/Wi-Fi, NMEA 2000 HTML Ethernet Connectivity [SCM-LC-N2K-PLUS-V2] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Shadow-Caster Light Commander Version 2 - 6-Zone Lighting Controlle...
Description
Description

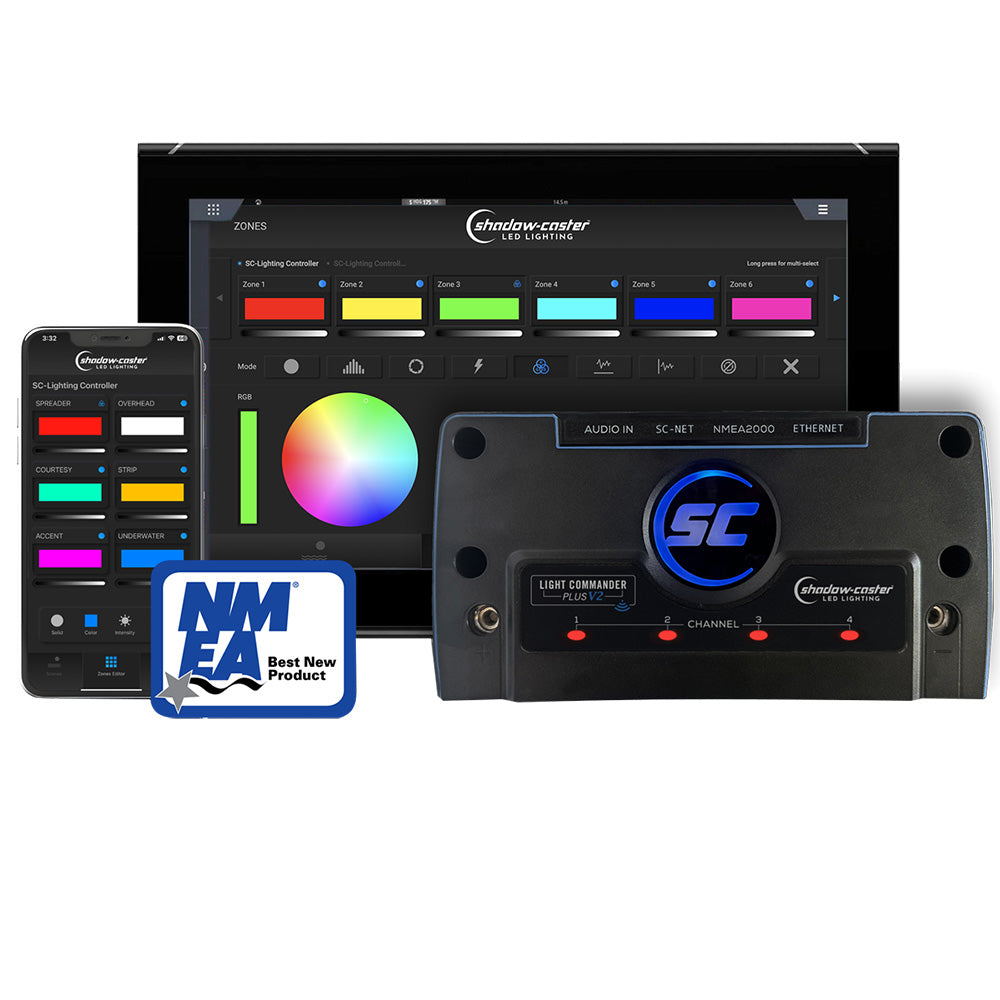

Light Commander Version 2 - 6-Zone Lighting Controller with Bluetooth/Wi-Fi, NMEA 2000 & HTML Ethernet Connectivity
Discover the SHADOW-CASTER® Light Commander NMEA 2000, a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.
Control up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set, and store a variety of lighting scenes – from color change, fade, rotation, and strobe, through to music sync effects, offering versatility and customization to illuminate your boat like never before.
Encased in durable IP67 housing with Deutsch-style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER® is renowned for.
Elevate your marine lighting experience with the Light Commander NMEA 2000 – where technology meets functionality and style.
Features:
- NMEA 2000 Backbone or MFD Network Port Connectivity
- Global control for all lighting
- Up to 6 separate zones of lighting control – expandable to 12 or 18 by connecting additional SCM-LC-N2K modules
- 6 “Instant ON” switch inputs for enabling lights without MFD control
- Supports RGB and RGBW lighting
- Optional wireless connectivity for control from a mobile device (SCM-LC-PLUS-V2)
- IP67 Water-resistant housing with waterproof connections
- Deutsch style IP67 rated connections, for clean OEM installations
- All in one design, no need for a separate MFD communication bridge
- “Digitally fused” over current protection circuits, 15amps/channel (X4)
- Backlit logo and zone indicator LEDs to indicate functions and operation
- Built-in 3.5mm female audio port and microphone for music sync input
- Multi-zone Lighting Controller for NMEA 2000 & Ethernet connectivity with integrated HTML interface
Specifications:
- IP67 rated enclosure
- Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET® connected modules
- 15 amps per RGB(W) zone, 60 amps max
- 10 to 30V input range
- Direct 3.5mm female audio input for music synchronization
- Music sync created by onboard DSP (Digital Signal Processing)
- Shadow-NET® bus allows system expandability
- Digital power protection set at 15amps/channel
- Built-in switch inputs for instant lighting for each zone
- 24-bit color support and gamma correction for universal color support
- Enclosure: 8.9” (226mm ) x 4.75” (120mm) x 1.8” (46mm)
Quick Guide (pdf)
Owner's Manual (pdf)
