Simrad OP50 Wired Remote Control - Portrait Mount [000-12364-001]

Simrad  |  SKU: HS-61077
$472.00

Payment
  • Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
  • Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
  • Shop Pay: For faster checkouts and secure payment processing.

Shipping

Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern

Returns

At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.

Eligibility for Returns:

To be eligible for a return:

  • The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
  • You’ll need the receipt or proof of purchase.

Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.

Description

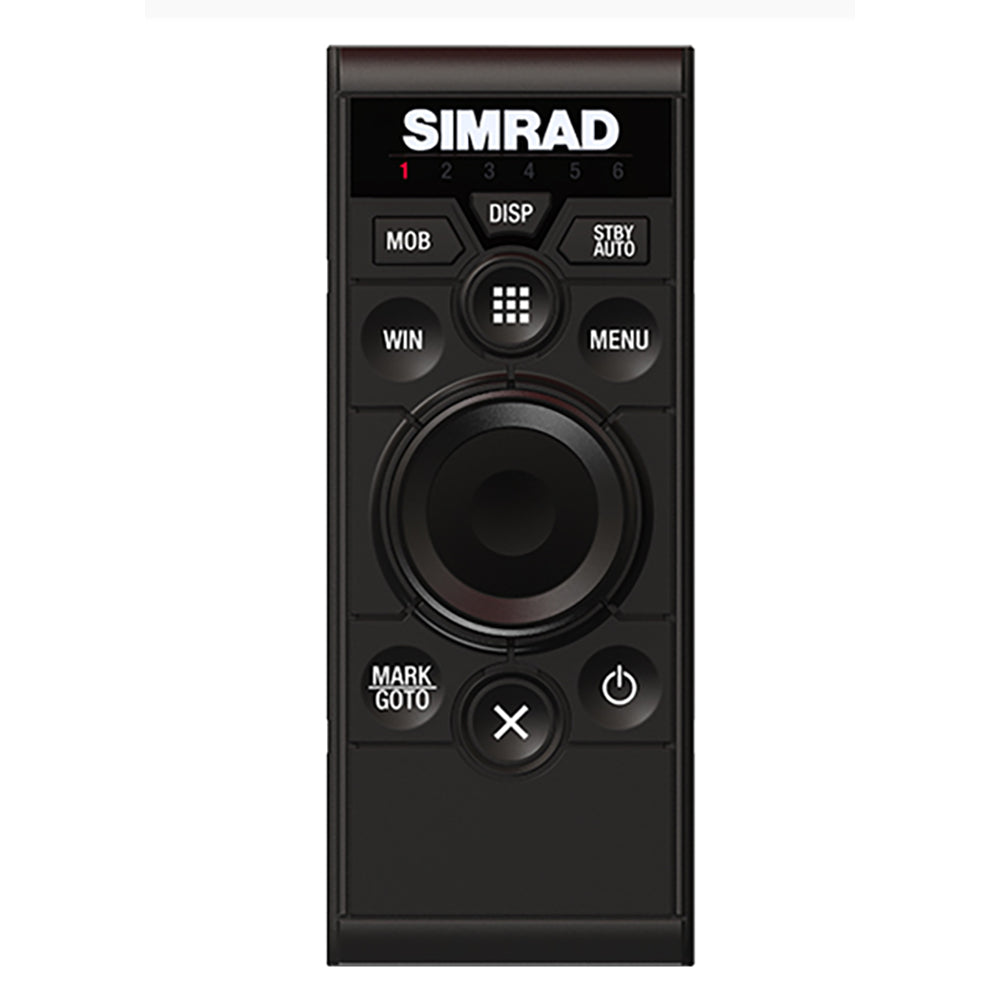

OP50 Wired Remote Control - Portrait Mount

Perfectly designed for mounting in a helm chair arm, between monitors, or in other locations suiting a portrait orientation, the Simrad OP50 Remote Controller provides intuitive keypad and rotary-dial command of up to six NSS evo2 or NSO evo2 multifunction displays.

Features:

  • Control up to six NSS evo2 or NSO evo2 multifunction displays
  • High-quality aluminium control dial with built-in cursor functions
  • Portrait orientation (landscape version also available)
  • Narrow design perfect for helm chair arm mounting
  • Dash mount with low 8mm profile
  • Zero-profile flush mount with optional bracket
  • Integrated high-decibel speaker for critical alarms
  • Quickly switch displays with dedicated button and LED indicators
  • Single NMEA 2000® connection


Manage Multiple Displays
Networked with a single NMEA 2000® connection for both power and control, one OP50 Remote Controller can operate up to six networked multifunction displays. Integrated LED indicator lights clearly show the selected display number, while a dedicated button cycles quickly through the available displays.

Controls Optimized for NSS evo2 and NSO evo2
The OP50 Remote Controller features a keypad specifically designed to operate the latest NSS evo2 and NSO evo2 multifunction displays efficiently and reliably in all conditions. The controller's high-quality aluminium dial features a knurled edge for precise rotary control, and built-in cursor functions for easy on-screen navigation.

Easy Mounting in Vertical or Portrait Orientation
The portrait OP50 is perfectly suited to mounting in the arm of a helm chair, with its narrow design and cable positioned specially to fit such installations. This orientation is also ideal for use in narrow consoles and beside Simrad MO-series touchscreen or pilothouse monitors. Dash mounting provides a slim 8mm profile, while an optional bracket allows total flush-mount installation.

Specifications:
  • NMEA 2000 Certified: Yes
  • Operating Temperature: -15°C to +55°C/5°F to 131°F
  • Waterproof Standard/Rating: IPX6 (from front when dash mounted with gasket) IPX2 (from back)
  • Product Width: 60mm/2.36"
  • Product Depth: 44.5mm/1.75"
  • Product Height: 150mm/5.9"
  • Product Weight: 0.3kg/0.66lb
  • Power Consumption: <100mA@13.5V
  • NMEA 2000 Load Equivalency Number: 2 network loads (100mA)

Specifications:

  • Type: Parts
  • Box Dimensions: 5"H x 6"W x 9"L WT: 1.2 lbs
  • UPC: 9420024141519

Quick Guide (pdf)
Owner's Manual (pdf)
