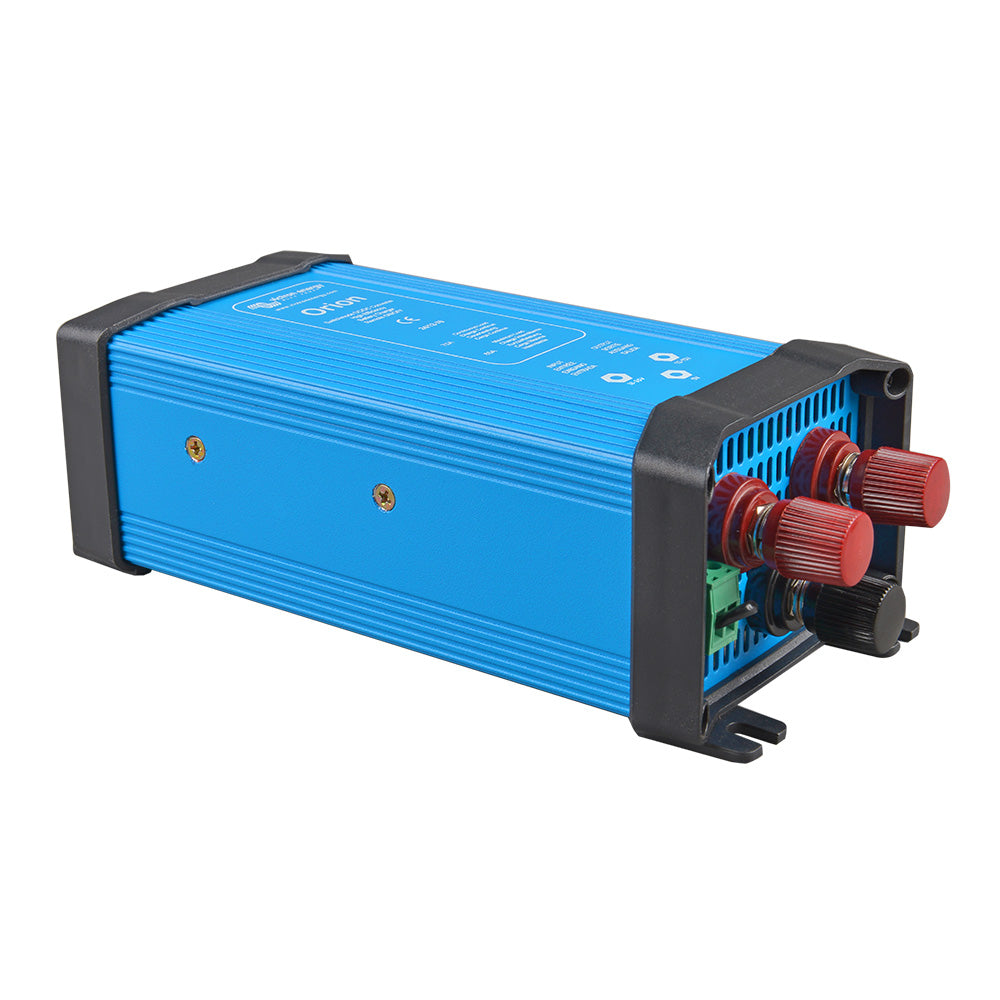

Victron Orion 24/12-70A DC-DC Converter w/Binding Posts - IP20 [ORI241270030]
Victron Orion 24/12-70A DC-DC Converter w/Binding Posts - IP20 [ORI241270030] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment
Payment
- Credit Cards: We accept major credit cards, including Visa, Mastercard, American Express, and Discover.
- Apple Pay & Google Pay: Simplify your checkout process using these digital wallets.
- Shop Pay: For faster checkouts and secure payment processing.
Shipping
Shipping
Ground, 2nd Day Air and Next Day Air available ! Same Day Shipping if your order is placed by 4pm Eastern
Returns
Returns
At Harbor Supply, we aim to ensure you’re completely satisfied with your purchase. If you need to return an item, you have 90 days from the date of delivery to initiate a return.
Eligibility for Returns:
To be eligible for a return:
- The item must be in its original condition—unused, unworn, with all tags still attached, and in its original packaging.
- You’ll need the receipt or proof of purchase.
Please note, returns must be authorized before sending any items back. Items returned without prior authorization will not be accepted.
Victron Orion 24/12-70A DC-DC Converter w/Binding Posts - IP20 [ORI...
Description
Description
Orion 24/12-70A DC-DC Converter with Binding Posts - IP20
Remote On-Off Connector
The remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be.
operated with a low-power switch or by the engine run/stop switch (see manual).
All Models with Adjustable Output Can Also Be Used as a Battery Charger
For example, charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All Models with Adjustable Output Can Be Paralleled to Increase Output Current
Up to five units can be connected in parallel.
Easy to Install
Delivery includes four Insulated Fastons Female Crimp 6.3mm.
Specifications:
- Input Voltage Range (V): 18-35
- Under Voltage Shutdown (V): 14
- Under Voltage Restart (V): 18
- Output Voltage Adjustable with Potentiometer: Yes
- Output Voltage (V): Adjustable, 10–15V, F set 13,2V
- Efficiency (%): 92
- Suitable to Buffer-Charge a Battery: Yes
- Can Be Connected in Parallel: Yes
- Continuous Output Current (A): 70
- Max. Output Current (A): 85
- Fan-Assisted Cooling (Temp. Controlled): Yes
- Galvanic Isolation: No
- Off Load Current: < 20mA
- Remote On-off: Yes
- Operating Temperature Range (Derate 3% Per °C above 40°C): -20 to +55°C
- DC Connection: M6 bolts
- Weight: 0,9 kg / 2.0 lbs
- Dimensions (H x W x D): (mm) 65 x 88 x 195 / (inch) 2.6” x 3.5” x 7.7”
- Safety Standards: EN 60950
- Emission Standards: EN 61000-6-3, EN 55014-1
- Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive Standards: ECE R10-4
Quick Guide (pdf)
